3M Touch Systems 11-71315-227-01 Touchscreen

3M Touch Systems C1500SS-SERIAL Touchscreen A newer version of this item is available.
It is replaced by the 3M Touch Systems C1500SS-SERIAL Touchscreen.
3M Touch Systems C1500SS - 3M MicroTouch CT150 Touch Screen Monitor - 15" - Capacitive
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 225 Nit brightness levels
  • Capacitive touchscreen technology is impenetrable to contaminants and liquids, for instance, dust, oil, grease and water globules
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all 3M Touch Systems C1500SS Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
3M Touch Systems 11-71315-227-01 Touchscreen
3M Touch Systems 11-71315-227-01 Touchscreen 3M Touch Systems 11-71315-227-01 Touchscreen
3M Touch Systems 11-71315-227-01 Touchscreen
3M Touch Systems 11-71315-227-01 Touchscreen
Full specifications (PDF)
3M Touch Systems C1500SS Touchscreen Model Overview

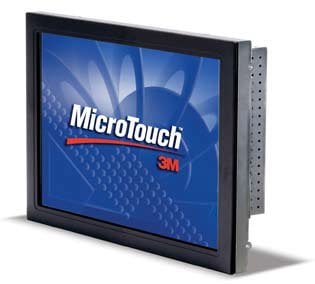

The 3M-MicroTouch C1500SS (15") is a robust metal chassis display that utilizes industry-standard surface capacitive touch technology which provides a durable, optically-enhanced, and cost competitive alternative to 5-wire resistive displays used in industrial automation equipment and kiosk enclosures. The C1500SS display offers multiple mounting options to make integration easy and a variety of bezel options for sealing against liquids and other contaminants. A remote on-screen display module helps simplify any changes to the display image during installation or system maintenance. The C1500SS display utilizes an all-glass surface capacitive touch sensor with the proprietary 3M-MicroTouch ClearTek Hard Coat to deliver superior durability.
3M Touch Systems 11-71315-227-01 Touchscreen Overview

The MicroTouch 15" CT150 Touch Monitor from 3M is designed for easy integration into kiosks, industrial enclosures and other installations where compact, touch-integrated displays are preferred.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
16 ms
Horizontal Viewing Angle:
150°
Vertical Viewing Angle:
150°
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
225 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
DVI:
No
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Height:
10.9"
Width:
13.8"
Depth:
2"
Weight (Approximate):
9.26 lb
Miscellaneous
Additional Information:

Slimline Bezel

Certifications & Standards:
  • FCC-B
  • CE
  • UL
  • CUL
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0511287709314
UPC: 511287709314
EAN: 0511287709314
UNSPSC: 43211903
