3M Touch Systems 11-71315-225-03 Touchscreen
3M Touch Systems 11-71315-225-03 Touchscreen
3M Touch Systems C1500SS -

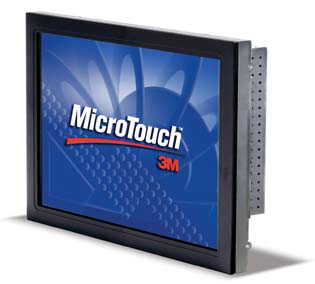

3M MicroTouch CT150 Touch Screen Monitor - 15" - Capacitive
- The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- The 225 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- Capacitive touchscreens must be impelled with a stylus carrying an electrical charge or by the touch of human skin
Need a different version? See all 3M Touch Systems C1500SS Touchscreens
Full specifications (PDF)The clear choice for optics, reliability, and ease of integration.
The 3M-MicroTouch C1500SS (15") is a robust metal chassis display that utilizes industry-standard surface capacitive touch technology which provides a durable, optically-enhanced, and cost competitive alternative to 5-wire resistive displays used in industrial automation equipment and kiosk enclosures. The C1500SS display offers multiple mounting options to make integration easy and a variety of bezel options for sealing against liquids and other contaminants. A remote on-screen display module helps simplify any changes to the display image during installation or system maintenance. The C1500SS display utilizes an all-glass surface capacitive touch sensor with the proprietary 3M-MicroTouch ClearTek Hard Coat to deliver superior durability.
3M Touch Systems 11-71315-225-03 Overview
The MicroTouch 15" CT150 Touch Monitor from 3M is designed for easy integration into kiosks, industrial enclosures and other installations where compact, touch-integrated displays are preferred.
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
16 ms
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
225 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
10.9"
Width:
13.8"
Depth:
2"
Weight (Approximate):
9.26 lb
Miscellaneous
Additional Information:
Contour Bezel
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0511287709178
UPC:
511287709178
EAN:
0511287709178
UNSPSC:
43211903
The 3M Touch Systems 11-71315-225-03 is also known as 3M MicroTouch 11-71315-225-03 or 117131522503 .
