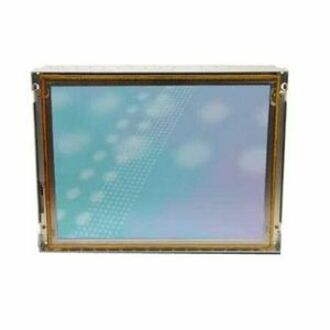

3M Touch Systems 11-4942-129-00 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review
3M Touch Systems FPD Chassis Touch Monitor - 17" capacitive, with serial controller, black. Order bezel separately, see accessories.
Slim, compact and durable

MicroTouch FPD Chassis from 3M Touch Systems are designed for easy integration into kiosks, industrial enclosures and other installations where compact, touch-integrated displays are preferred. MicroTouch FPD Chassis offer a more compact enclosure, better optics, lower power usage, longer life and less heat generation than traditional CRT chassis monitors. These slim profile monitors are used in many different applications, from light industrial to point-of-sale devices to voting machines. All monitors ship with cable and power supply.

Technical Information

  • Touch Screen Type: Capacitive
  • Screen Size: 17" - Active Matrix TFT LCD
  • Dot Pitch: 0.264mm
  • Monitor Response Time: 25ms
  • Mountable: VESA
  • OSD Controls: Brightness Contrast Horizontal Position Vertical Position Phase Auto-Adjust Sharpness Frequency Utility

General Information

  • Manufacturer: 3M
  • Product Line: MicroTouch
  • Product Name: MicroTouch CT Touch Screen Monitor

Physical Characteristics

  • Dimensions: 13.18" (335mm) x 15.98" (406mm) x 1.93" (49mm)
  • Weight: 4.6 kg (10.14 lb)

Interfaces/Ports

  • Interfaces: 1 x 15-pin - HD DB-15

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -25°C (-13°F) to 60°C (140°F) Storage
  • Humidity: 90% Operating Non-condensing

Display & Graphics

  • Maximum Resolution: 1280 x 1024
  • Brightness: 215 cd/m2
  • Ratio: 350:1 - Contrast Ratio

Power Description

  • Input Voltage: 12 V DC
  • Power Consumption: 20W - Normal
  • Power Management: VESA DPMS

Agency Approvals

  • Agency Approvals: FCC Class B CE UL cUL

Other

  • Additional Information: Display Color: 16.7 Million Colors (24-bit) Backlight Life: 35000 hours 5 years Touch Sensor and Components Warranty Viewing Angle: Horizontal: +/- 75° Vertical: +65°/-60°

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand 3M Touch Systems
Model FPD Chassis
Screen Size 17
Display Type LCD
Touch Technology Capacitive
Form Factor Desktop
Color Black
Interface RS-232 Serial


Customer Review Summary

Recommended Accessories for Model: 3M Touch Systems FPD Chassis Touchscreen
3M Touch Systems Power supply (32173)
For the M170
Ships in 3-5 Days
$58.80
+ Add to Quote
3M Touch Systems Monitor Accessories (5021104)
17 inch Panel Mount (Bezel, Flanged)
Ships in 3-5 Days
$116.60
+ Add to Quote
3M Touch Systems (5013923)
Black bracket kit for M150 and M170
Ships in 3-5 Days
$23.60
+ Add to Quote
3M Touch Systems Universal Monitor Accessories (34049)
Cable (Multimedia Cables) for the M1700SS and M170
Ships in 3-5 Days
$18.60
+ Add to Quote
3M Touch Systems Universal Monitor Accessories (34048)
Cable (Multimedia Cables) for the M1500SS
Ships in 3-5 Days
$18.60
+ Add to Quote
Protect Your Product

The 3M Touch Systems 11-4942-129-00 is also known as 3M MicroTouch MCT-11494212900 or 11494212900 .
