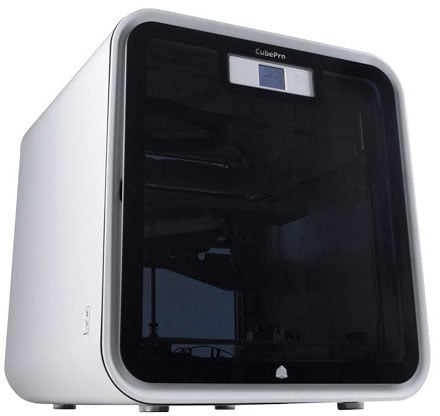

3D Systems 401733 3D Printer

The 3D Systems 401733 3D Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
3D Systems CubePro - CubePro Advanced 3D Printer, Connectivity: Wi-Fi, USB, Software Included, Dimensions: 22.75(w) x 23.25(h) x 22.75(d) inches, Weight 90 lbs., Print Jets: Single Jet Plastic jet printing, Maximum Design Size: 11.2(w) x 9.06(h) x 10.6(d) inches, Printing Material: PLA / ABS / dissolvable natural PLA, Operating Temperature: 536┬░F / 280┬░C, 90 days parts and labor warranty
  • 3D printer lets you think faster, move quicker and cuts your cost
  • Features single print jet hassle-free printing
  • Its sufficient build volume, 9.06" x 11.20" x 10.60" allows you to create objects of your desired size
  • Acrylonitrile Butadiene Styrene (ABS) supported - an incredibly strong, durable and versatile material that is ideal for use in creating things like living hinges and other functional parts
  • Print your document from the comfort of your couch with Wireless LAN connectivity
  • This desktop 3D printer adapts to your desktop and lets you design conveniently
Read More
Discontinued Need Assistance?
Add to Quote

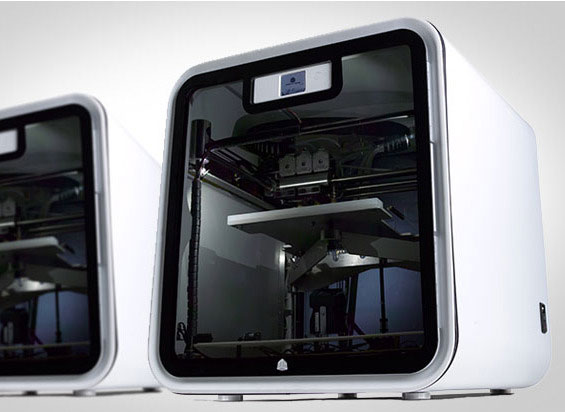

3D Systems CubePro 3D Printer Model Overview
The CubePro features the largest-in-class build platform with ultra high-resolution. With prints 2.5 times larger than any other desktop prosumer and hobbyist printer (11.2" x 10.6" x 9.06") with ultra high-resolution settings of 70-micron thin print layers, professional quality printing has never been so large or easy.
3D Systems 401733 3D Printer Overview

Print big, print accurate

The CubePro features the largest-in-class build platform with ultra high-resolution. With prints 2.5 times larger than any other desktop prosumer and hobbyist printer (11.2" x 10.6" x 9.06" or 285.4mm x 270.4mm x 230mm) with ultra high-resolution settings of 70-micron thin print layers, professional quality printing has never been so large or easy.

New durable material - nylon

CubePro will support a new material for production: nylon, along with strong ABS and compostable PLA plastic. Create functional prototype models or make end-use parts for your engineering applications. The CubePro is a versatile printer for both the engineer and hobbyist alike. Nylon is exceptionally durable for high heat resistance, high strength to weight ratio, or parts requiring secondary operations like painting, machining or adhesive bonding.

Controlled print environment

A controlled process environment ensures improved accuracy and reliability of print for effortless, professional quality every time for your largest ABS plastic prints. Automated settings ensure home-safe printing in your mancave, on your workbench and at your desktop.

Strong, fast & long-lasting

Guaranteed faster, more accurate prints with stabilized print mechanics and easy feed cartridges for prolonged material life.

Triple color + three materials = thousands of options

Get more expressive with 3D printing in up to 3 simultaneous colors with 3 material options. Select from over 24 vibrant colors for more unique combinations.

Connect better to experience better

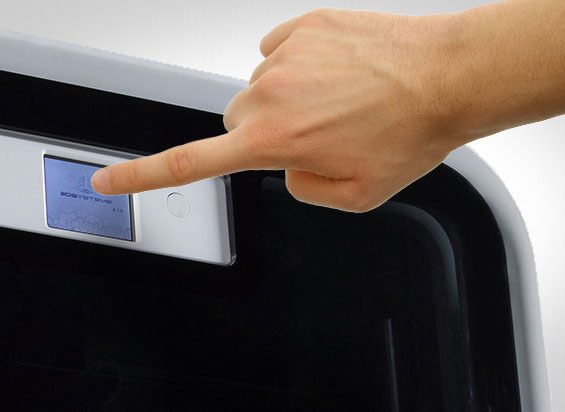

Connect conveniently with an easy to use color touchscreen display and WiFi capability.

Technical Information
Print Jet:
Single
Print Technology:
Plastic Jet Printing (PJP)
Layer Thickness:
11.8 mil
Print/Creation Size:
9.06" x 11.20" x 10.60"
Maximum Print Speed:
0.59 in/s
Maximum Print Resolution:
3.9 mil
Filament Diameter:
68.9 mil
Printing Mode:
High Definition (HD)
Supported Material:
  • Acrylonitrile Butadiene Styrene (ABS)
  • Polylactic Acid (PLA)
  • Nylon
Number of Extruders:
1
File Formats:
STL
Interfaces/Ports
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Software
Software Included:
CubePro Software
Physical Characteristics
Form Factor:
Desktop
Height:
23.3"
Width:
22.8"
Depth:
22.8"
Weight (Approximate):
90.70 lb
Miscellaneous
Package Contents:
  • CubePro 3D Printer
  • Software CD
Additional Information:
  • Build Volume: 10.75 x 10.75 x 9.5"
Print Tolerance:
  • X and Y Axis: ± 1% dimension or ± 0.008" / 0.2mm (200 microns), whichever is greater.
  • Z Axis: ± half the processed z resolution. Shrinkage and warping can occur on models and is purely geometry dependent.
System Requirements:

Windows requirements

32 or 64 bit operating systems:

  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows is required for ad-hoc WiFi print job submission - if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework

Mac OSX requirements

  • Mac 10.8 and up

Minimum hardware requirements

  • Processor: Multi-core processor - 2GHz or faster per core
  • System RAM: 2GB minimum
  • Screen resolution: 1024 x 768
Platform Supported:
  • PC
  • Mac
Assembly Required:
No
Item Numbers
GTIN: 0840846100737, 8718215787990
UPC: 840846100737
EAN: 0840846100737, 8718215787990
UNSPSC: 23261507
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The 3D Systems 401733 3D Printer is also known as THR-401733
