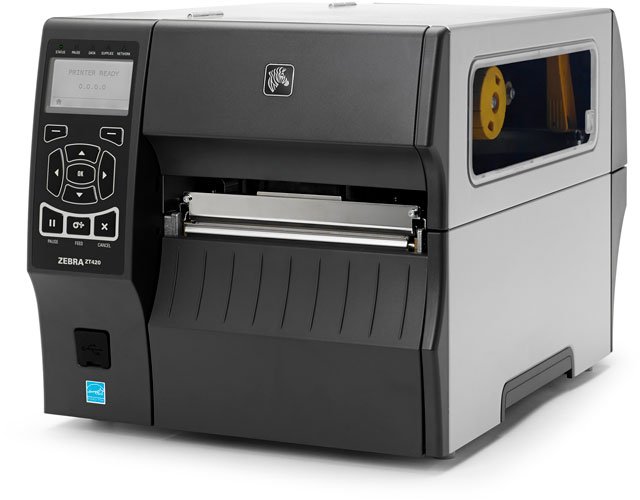

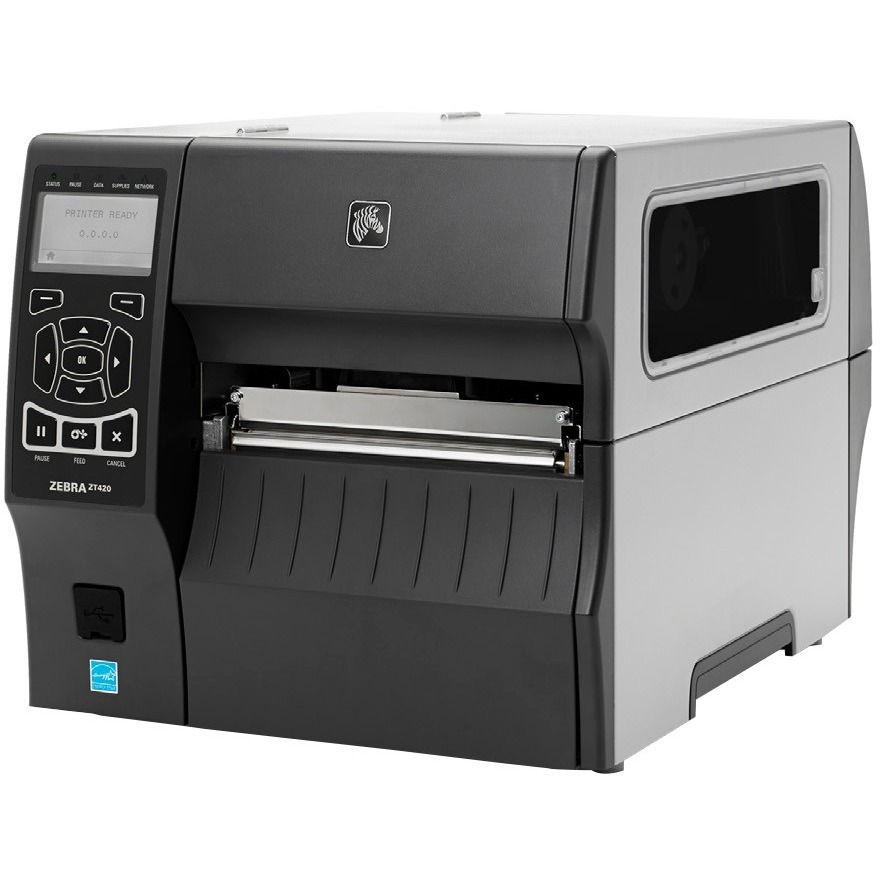

Zebra ZT42063-T210000Z Barcode Label Printer

Zebra ZT42163-T210000Z Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT42163-T210000Z Barcode Label Printer.
Zebra ZT400 : ZT420 - Thermal Transfer/Direct Thermal printing, 300 dpi, 6" print width, USB/RS-232/Ethernet/Bluetooth interfaces, Cutter, PR
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Serial (RS-232), USB, USB Host
Print Resolution
300 dpi
Printer Options
Cutter
Max Print Width
6.5 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Label Print gives dependable results with maximum productivity
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 7.01" maximum label width for your convenience and feasible usability
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Cutter helps you determine the whereabouts of your design you want the shape to be cut to ensure maximum efficiency
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides maximum usability with better reliance
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra ZT420 Barcode Label Printer Model Overview
The ZT420 Series printers are rugged and loaded with a standard set of advanced features allowing for use in the widest array of Manufacturing, Transportation and Logistics, Healthcare and Retail applications. Building on the Z Series' reliability with advancements in print speed, connectivity options, management and support tools, the ZT420 can be integrated into a wide range of environments.
Zebra ZT42063-T210000Z Barcode Label Printer Overview
Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers,designed for years of performance in a wide array of applications.

The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive iconbased LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Element Energy Equalizer
  • Bi-color LED
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.01"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported:
Zebra's Link-OS
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.8"
Width:
13.3"
Depth:
19.5"
Weight (Approximate):
40 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZT400 ZT420 Label Printer
  • US Power Cords
  • Software and Drivers CD
  • User Documentation
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0024606604868, 0364737645294, 0783555022825, 4943793119398
UPC: 024606604868, 364737645294, 783555022825
EAN: 0024606604868, 0364737645294, 0783555022825, 4943793119398
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZT42063-T210000Z Barcode Label Printer is also known as ZEB-ZT42063T210000Z or ZT42063T210000Z.
