Zebra ZM400 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: ZM400-2004-0000T
Model: ZM400

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal Transfer printing, 203 dpi, 4" print width, USB, Parallel, and Serial Interfaces. Includes UK/EU Power cord. Cables sold separately.

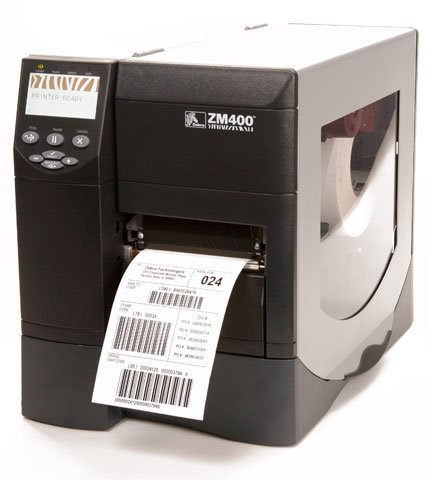

Zebra ZM400 Barcode Label Printer Model Overview

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600-dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.
Zebra ZM400-2004-0000T Barcode Label Printer Overview

The ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput the ZM400 is upgradeable to grow with changing needs.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • PDF-417
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Tag Stock
  • Black Mark
  • Fanfold
  • Notched
  • Perforated Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • XML
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • ZM400 Thermal Label Printer
  • Power Cord (European and UK plug)
  • Driver and Software CD
  • Safety Guide
Cables Included:
AC
Additional Information:
  • RFID Ready
  • Auto-calibration
  • Real Time Clock
  • 32-bit processor
  • Unicode - Compliant
  • Color-coded operator cues
  • Quick change printhead and platen
  • Standard Ribbon coated-out spindle
  • Metal media cover with large clear window
  • Multi-lingual backlit 240x128 pixel graphic display
  • Die-cast aluminum base, frame, and printhead mechanism
  • Charcoal gray form design (for improved smudge resistance)
  • Element Energy Equalizer (E3) (for print head energy control)
  • 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
