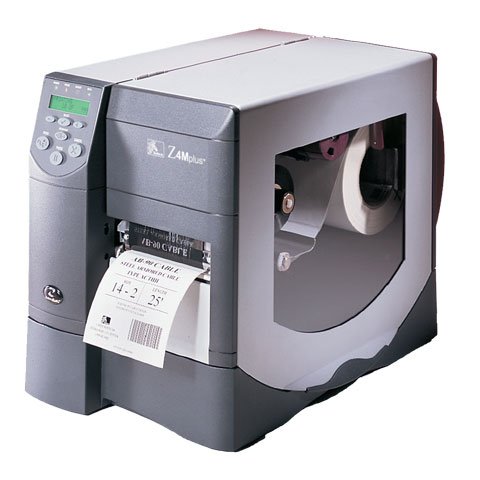

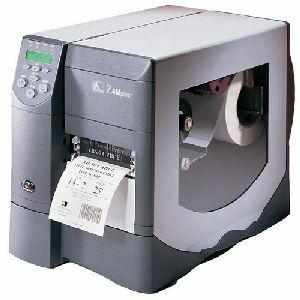

Zebra Z4M00-3001-5020 Barcode Label Printer

The Zebra Z4M00-3001-5020 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal printing, 300 dpi, 4" print width, Serial and Ethernet Interfaces, Rewinder and Peeler, ZPL, 8MB DRAM, 2MB Flash. Includes Power Cord with US Plug. Order cables separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • Enjoy maximum efficiency with label print printing
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width for dependable, desired results
  • 39" maximum label length for your convenience and feasible usability
  • Supports fanfold media type for maximum feasibility and better accommodation of your requirements
  • Comes with 8 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
  • LCD display is long-lasting with reduced screen burning to ensure maximum efficiency
Read More

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z4M00-3001-5020 Barcode Label Printer
Zebra Z4M00-3001-5020 Barcode Label Printer Zebra Z4M00-3001-5020 Barcode Label Printer Zebra Z4M00-3001-5020 Barcode Label Printer
Zebra Z4M00-3001-5020 Barcode Label Printer
Zebra Z4M00-3001-5020 Barcode Label Printer

Full specifications (PDF)
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-3001-5020 Barcode Label Printer Overview

Processing labels fast is a breeze with the Z4Mplus industrial and commercial bar code printer. Z4Mplus printer output labels quickly and efficiently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z4Mplus die-cast metal construction means reliability and top performance for industrial environments and distribution centres.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
  • TLC 39
Peel Facility:
Yes
Rewinder:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Software
Software Included:
  • User's CD includes Ztools Utilties:
  • ZPL II Programming Guide
  • BAR-ONE Lite/Platinum demo
  • BAR-ONE for mySAP Business Suite
  • Zebra's Universal Windows Printer Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord With US Plug
Cables Included:
AC
Additional Information:
  • 32 bit processor
  • Transmissive/reflective media sensor
  • Metal media cover with large clear window
  • Real time clock
  • Auto-calibration
  • Auto-ranging power supply
  • Color-coded operator cues
  • Ribbon width: 1" to 4.25" Peel/Cutter
  • Print Length: 165"
  • Graphic Features:
  • Supports user-defined fonts and graphics including custom logos
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z4M00-3001-5020 Barcode Label Printer is also known as ZEB-Z4M0030015020 or Z4M0030015020.
