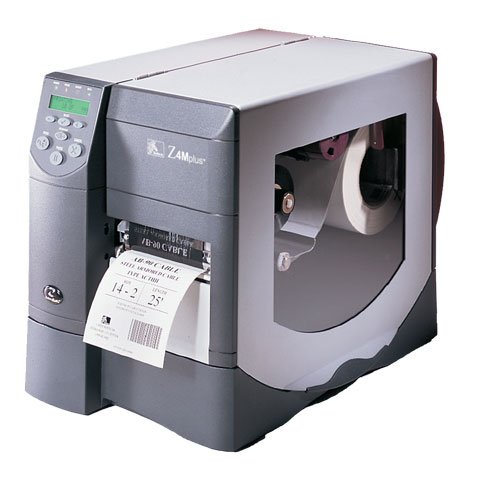

Zebra Z4M00-3001-4200 Barcode Label Printer

The Zebra Z4M00-3001-4200 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal printing, 300 dpi, 4" print width, Wi-Fi Interface -Wireless functionality requires wireless network compact flash card (Part# LA-4137-1020-WW), Peeler with Liner Take-Up, ZPL, 8MB DRAM, 2MB Flash. Includes Power Cord with US Plug. Order cables separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Wi-Fi
Print Resolution
300 dpi, 305 dpi
Printer Options
Peeler
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.25" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports fanfold media type for maximum feasibility and better accommodation of your requirements
  • Comes with 8 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • Custom Size media size for better reliance and maximum usability
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-3001-4200 Barcode Label Printer Overview

Z4Mplus Label Printer die-cast metal thermal printer. Z4Mplus Label Printer is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business needs

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
  • TLC 39
Peel Facility:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Size:
Custom Size
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord with US plug
Cables Included:
AC
Additional Information:
  • Real time clock
  • Auto-calibration
  • CF Memory option
  • Peel with liner take-up
  • Auto-ranging power supply
  • Color-coded operator cues
  • Metal media cover with large clear window
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
