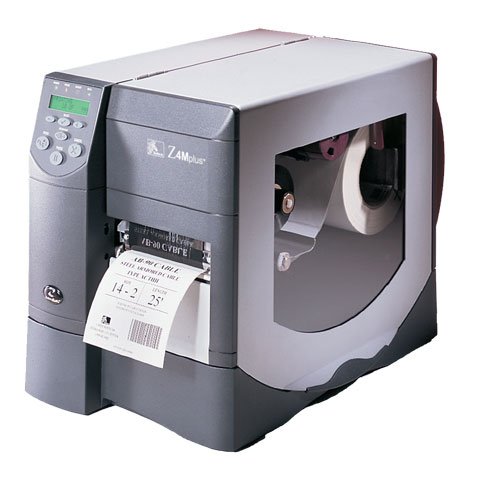

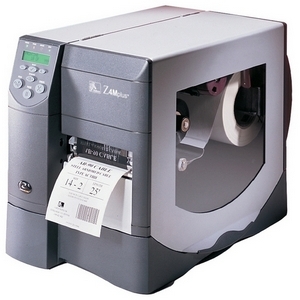

Zebra Z4M00-3001-4020 Barcode Label Printer

The Zebra Z4M00-3001-4020 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal printing, 300 dpi, 4" print width, Serial and Ethernet Interfaces, Peeler with Liner Take-Up, ZPL, 8MB DRAM, 2MB Flash. Includes Power Cord with US Plug. Order cables separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
  • 4.50" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z4M00-3001-4020 Barcode Label Printer
Zebra Z4M00-3001-4020 Barcode Label Printer Zebra Z4M00-3001-4020 Barcode Label Printer Zebra Z4M00-3001-4020 Barcode Label Printer
Zebra Z4M00-3001-4020 Barcode Label Printer
Zebra Z4M00-3001-4020 Barcode Label Printer

Full specifications (PDF)
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-3001-4020 Barcode Label Printer Overview

Processing labels fast is a breeze with the Z4Mplus industrial and commercial bar code printer. At 6 inches (152 mm) per second, this Z4Mplus printer output labels quickly and efficently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z4Mplus die-cast metal consutruction means reliablity and top performance for industrial environments and distribution centres.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
Peel Facility:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Notched
  • Tag Stock
  • Perforated Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord With US Plug
Cables Included:
AC
Additional Information:
  • Liner Take-up
  • Auto Calibration
  • Real Time Clock
  • Color coded operator cues
  • Auto detectable power supply
  • Zebra's E3 Printhead Energy Control
  • External Socket: Standard version
Platform Supported:
PC
Certifications & Standards:

Agency Approvals:

  • IEC60950
  • EN55024 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3

Product Markings:

  • cULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI (pending)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z4M00-3001-4020 Barcode Label Printer is also known as ZEB-Z4M0030014020 or Z4M0030014020.
