Zebra Z4M00-3001-3020 Barcode Label Printer

The Zebra Z4M00-3001-3020 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal printing, 300 dpi, 4" print width, Serial and Ethernet Interfaces, Peeler, ZPL, 8MB DRAM, 2MB Flash. Includes Power Cord with US Plug. Order cables separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for your convenience and feasible usability
  • Supports continuous form media type for dependable, efficient results with maximum productivity
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

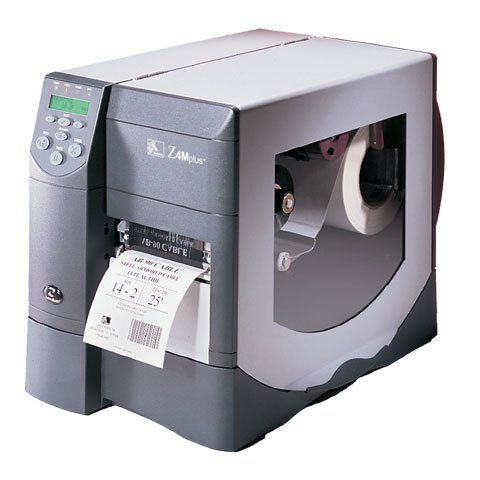

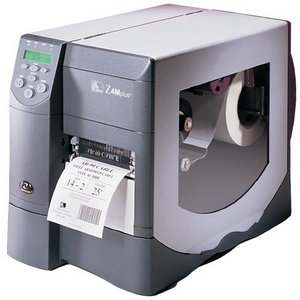

Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-3001-3020 Barcode Label Printer Overview

Z4Mplus Label Printer die-cast metal thermal printer. Z4Mplus Label Printer is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business needs

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Peel Facility:
Yes
Rewinder:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Notched
  • Tag Stock
  • Perforated Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord with US plug
Cables Included:
AC
Additional Information:
  • Print length: 73" (1,851 mm)
  • 32-bit processor
  • Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
  • Metal media cover with large clear window
  • Auto-calibration
  • Color-coded operator cues
  • Zebra's E3 Printhead Energy Control
  • Real Time Clock
  • Media sensors:
  • Transmissive
  • Reflective
  • Ribbon Characteristics:
  • Outside diameter: 3.2" (81.3 mm)
  • Standard length: 1476' (450 m) or 984' (300 m)
  • Ratio: 3:1 media roll to ribbon ratios
  • Ribbon width: 2" (51 mm) to 4.33" (110 mm)
  • Ribbon setup: Ribbon wound ink side out
  • ID Core: 1.0" (25.4 mm)
  • Fonts and Graphics:
  • Sets: IBM Code Page 850 International character set
  • Optional European and Asian font sets
  • Supports user-defined fonts and graphics, including custom logos
  • ZPL II drawing commands, including boxes and lines
  • Operating temperature:
  • Thermal transfer: 40° F (5° C) to 104° F (40° C)
  • Direct thermal: 32° F (0° C) to 104° F (40° C)
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:

Printhead is warranted separately.

Item Numbers
UNSPSC: 43212108
