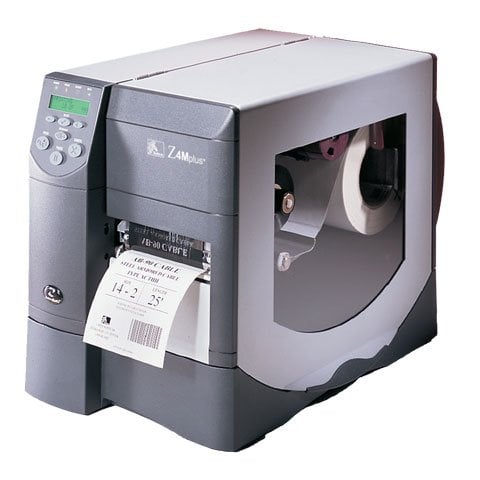

Zebra Z4M00-2004-0000 Barcode Label Printer

The Zebra Z4M00-2004-0000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal, 203 dpi, 10 ips, 4" print width, serial & parallel interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, power cord with UK/European plug & memory socket board. Order cables separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.25" maximum label width for dependable, desired results
  • 39" maximum label length for your convenience and feasible usability
  • Supports fanfold media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • 8" x Roll Paper media size for dependable, efficient results with maximum productivity
  • LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage
Read More

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z4M00-2004-0000 Barcode Label Printer
Zebra Z4M00-2004-0000 Barcode Label Printer Zebra Z4M00-2004-0000 Barcode Label Printer Zebra Z4M00-2004-0000 Barcode Label Printer
Zebra Z4M00-2004-0000 Barcode Label Printer
Zebra Z4M00-2004-0000 Barcode Label Printer

Full specifications (PDF)
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-2004-0000 Barcode Label Printer Overview

Z4Mplus Label Printer die-cast metal thermal printer. Z4Mplus Label Printer is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business needs.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • Codabar
  • ISBT-128
  • UPC-E
  • UPC-A
  • Plessey
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Planet Code
  • Industrial 2 of 5
  • LOGMARS
  • POSTNET
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • MSI
  • Codablock
  • Micro PDF-417
  • Maxi Code
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • TLC 39
  • RSS
  • EAN-8
  • EAN-13
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Size:
  • 8" x Roll Paper
  • 3.20" x 1476 ft
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Software
Software Included:
  • User's CD includes Ztools Utilties:
  • ZPL II Programming Guide
  • BAR-ONE Lite/Platinum demo
  • BAR-ONE for mySAP Business Suite
  • Zebra's Universal Windows Printer Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord with European and UK plug
Cables Included:
AC
Additional Information:
  • Transmissive/reflective media sensor
  • Metal media cover with large clear window
  • Real time clock
  • Auto-calibration
  • Auto-ranging power supply
  • Color-coded operator cues
  • Ribbon width: 1" to 4.25" Peel/Cutter
  • Print Length: 165"
  • Graphic Features:
  • Supports user-defined fonts and graphics including custom logos
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z4M00-2004-0000 Barcode Label Printer is also known as ZEB-Z4M0020040000 or Z4M0020040000.
