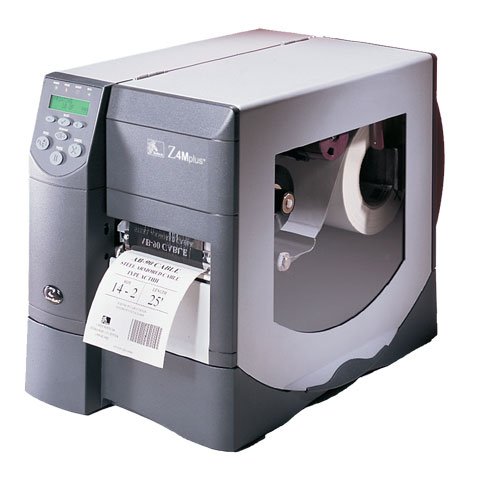

Zebra Z4M00-2001-5020 Barcode Label Printer

The Zebra Z4M00-2001-5020 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal, 203 dpi, 10 ips, 4" print width, PrintServerII interface, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & peeler and full roll rewinder. Order cables separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Label Print gives dependable results with maximum productivity
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.25" maximum label width for your convenience and feasible usability
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage
Read More

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z4M00-2001-5020 Barcode Label Printer
Zebra Z4M00-2001-5020 Barcode Label Printer Zebra Z4M00-2001-5020 Barcode Label Printer Zebra Z4M00-2001-5020 Barcode Label Printer
Zebra Z4M00-2001-5020 Barcode Label Printer
Zebra Z4M00-2001-5020 Barcode Label Printer

Full specifications (PDF)
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-2001-5020 Barcode Label Printer Overview

Processing labels fast is a breeze with the Z4Mplus industrial and commercial bar code printer. Z4Mplus printer output labels quickly and efficently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z4Mplus die-cast metal consutruction means reliablity and top performance for industrial environments and distribution centres.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
Peel Facility:
Yes
Rewinder:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Notched
  • Tag Stock
  • Perforated Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Software
Software Included:
  • Ztools Utilities
  • ZPL II Programming Guide
  • BAR-ONE Lite/Platinum demo
  • BAR-ONE for mySAP Business Suite
  • Zebra's Universal Window Printer Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord With US Plug
Cables Included:
AC
Additional Information:
  • Auto-detectable power supply
  • Auto-calibration
  • Color-coded operator cues
  • Zebra's E3 Printhead Energy Control
  • Real Time Clock
  • Peel with full roll rewind
  • Fonts and Graphics:
  • Sets: IBM Code Page 850 International character set
  • Supports user-defined fonts and graphics, including custom logos
  • Operating temperature:
  • 40° F (5° C) to 104° F (40° C) Thermal transfer
  • 32° F (0° C) to 104° F (40° C) Direct thermal
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z4M00-2001-5020 Barcode Label Printer is also known as ZEB-Z4M0020015020 or Z4M0020015020.
