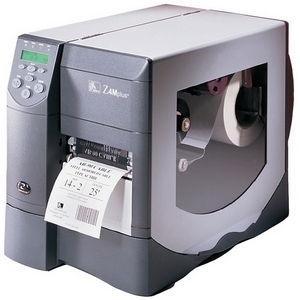

Zebra Z4M00-2001-4030 Barcode Label Printer

The Zebra Z4M00-2001-4030 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra Z4M Plus - Direct Thermal-Thermal Transfer Printer, 203 dpi, ZPL, 2MB Flash, Power Cord with US Plug, Peel with Liner Take-Up and 10/100 PrintServer

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet

Print Resolution

203 dpi

Max Print Width

4.25 inch

Ribbon Core Size

1 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
203 maximum print resolution (dpi) for better reliance and added usability
Delivers high-speed, hassle-free labeling solution for your business needs
4.25" maximum label width for your convenience and feasible usability
39" maximum label length to easily accommodate your needs with added productivity
Supports fanfold media type for better reliance and maximum usability
Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra Z4M00-2001-4030 Barcode Label Printer

Overview

Full specifications (PDF)

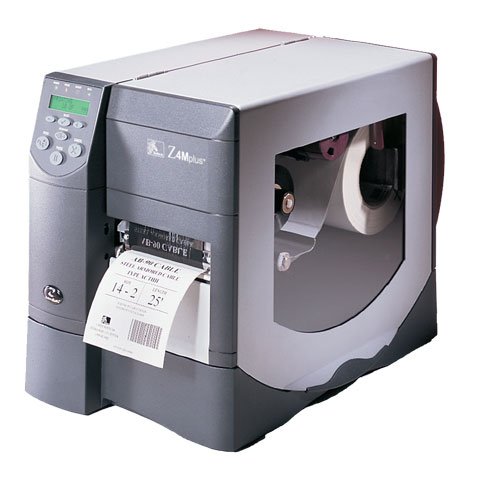

Zebra Z4M Plus Barcode Label Printer Model Overview

The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.

Zebra Z4M00-2001-4030 Barcode Label Printer Overview

Z4Mplus Label Printer die-cast metal thermal printer. Z4Mplus Label Printer is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business need

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
EAN-8
EAN-13
Interleaved 2 of 5
Industrial 2 of 5
ISBT-128
LOGMARS
MSI
Planet Code
Plessey
POSTNET
RSS
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
Micro PDF-417
Aztec Code
TLC 39

Peel Facility:

Yes

Memory

Standard Memory:

8 MB

Memory Technology:

DRAM

Flash Memory:

2 MB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Fanfold
Continuous Form
Die-cut Label
Notched
Tag Stock
Black Mark
Perforated Label

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

13.3"

Width:

10.9"

Depth:

18.7"

Miscellaneous

Package Contents:

Z4Mplus Label Printer
Safety Guide
User's CD
Power Cord with US plug

Cables Included:

Additional Information:

Liner take up
Real time clock
Auto-calibration
Auto-ranging power supply
Color-coded operator cues
Ribbon width: 1 to 4.25 inch Peel
Transmissive/reflective media sensor
Metal media cover with large clear window

Platform Supported:

Certifications & Standards:

IEC60950
EN55022 Class B
EN55024
EN61000-3-2
EN61000-3-3
CULus
CE
FCC Class B
ICES-003
VCCI
C-Tick
NOM
IRAM
CCC
GOST-R
BSMI

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra Z4M00-2001-4030 Barcode Label Printer is also known as ZEB-Z4M0020014030 or Z4M0020014030.
