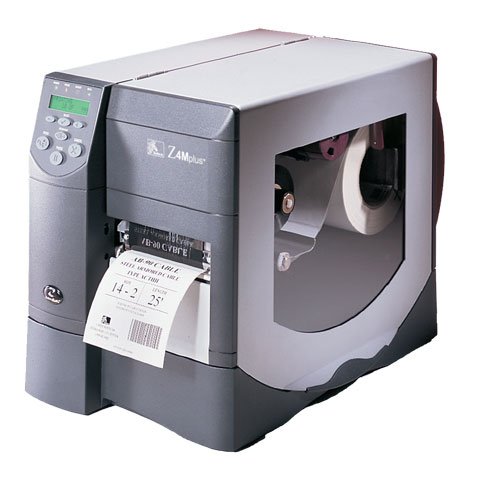

Zebra Z4M00-2001-4000 Barcode Label Printer

The Zebra Z4M00-2001-4000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra Z4M Plus - Thermal transfer & direct thermal, 203 dpi, 10 ips, 4" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & peeler with liner take-up. Order cables separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232)

Print Resolution

203 dpi

Max Print Width

4.25 inch

Ribbon Core Size

1 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
203 maximum print resolution (dpi) for your convenience and easy usage
The printer is capable of printing sharp and detailed monochrome documents quickly
Enjoy maximum efficiency with label print printing
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
4.50" maximum label width for dependable, desired results
39" maximum label length to easily accommodate your needs with added productivity
Supports continuous form media type for better reliance and maximum usability
Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra Z4M00-2001-4000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra Z4M Plus Barcode Label Printer Model Overview

The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.

Zebra Z4M00-2001-4000 Barcode Label Printer Overview

Processing labels fast is a breeze with the Z4Mplus industrial and commercial bar code printer (with peel and line take-up). At 10 inches (254 mm) per second, this Z4Mplus printer output labels quickly and efficently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z4Mplus die-cast metal consutruction means reliablity and top performance for industrial environments and distribution centres.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
EAN-8
EAN-13
Interleaved 2 of 5
Industrial 2 of 5
ISBT-128
LOGMARS
MSI
Planet Code
Plessey
POSTNET
RSS
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Code 128-A
Code 128-B
Code 128-C
UCC
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
Micro PDF-417

Peel Facility:

Yes

Memory

Standard Memory:

8 MB

Flash Memory:

2 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Continuous Form
Fanfold
Die-cut Label
Notched
Tag Stock
Perforated Label
Black Mark

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL
ZPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Frequency:

62 Hz

Physical Characteristics

Height:

13.3"

Width:

10.9"

Depth:

18.7"

Miscellaneous

Package Contents:

Z4Mplus Label Printer
Safety Guide
User's CD
Power Cord With US Plug

Cables Included:

Additional Information:

Print length: 73" (1,851 mm)
32-bit processor
Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
Metal media cover with large clear window
Auto-calibration
Color-coded operator cues
Zebra's E3 Printhead Energy Control
Real Time Clock
Media sensors:

Transmissive
Reflective

Ribbon Characteristics:

Outside diameter: 3.2" (81.3 mm)
Standard length: 1476' (450 m) or 984' (300 m)
Ratio: 3:1 media roll to ribbon ratios
Ribbon width: 2" (51 mm) to 4.33" (110 mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)

Fonts and Graphics:

Sets: IBM Code Page 850 International character set
Optional European and Asian font sets
Supports user-defined fonts and graphics, including custom logos
ZPL II drawing commands, including boxes and lines

Operating temperature:

Thermal transfer: 40° F (5° C) to 104° F (40° C)
Direct thermal: 32° F (0° C) to 104° F (40° C)

Platform Supported:

Certifications & Standards:

IEC60950
EN55024 Class B
EN55024
EN61000-3-2
EN61000-3-3

Product Markings:

cULus
CE Marking
FCC-B
ICES-003
VCCI
C-Tick
NOM
IRAM
CCC
GOST-R
BSMI (pending)

Warranty

Limited Warranty:

1 Year

Additional Warranty Information:

Printhead is warranted separately.

Item Numbers

GTIN: 0732387103530

UPC: 732387103530

EAN: 0732387103530

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra Z4M00-2001-4000 Barcode Label Printer is also known as ZEB-Z4M0020014000 or Z4M0020014000.
