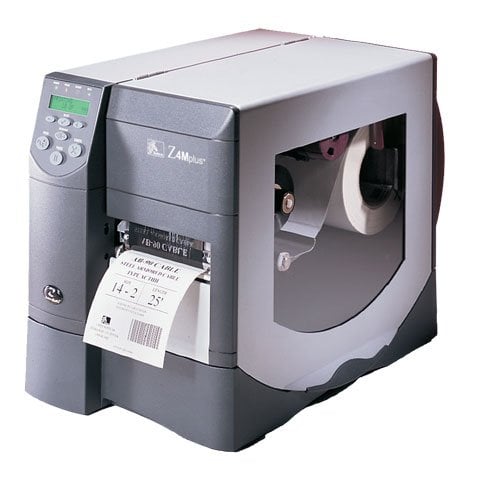

Zebra Z4M00-2001-3030 Barcode Label Printer

The Zebra Z4M00-2001-3030 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal, 203 dpi, 4 inch Print Width, 10 ips Print Speed, 2MB Flash, Serial and Internal 10/100 PrintServer interfaces, Power Cord with US Plug, Peel. Includes ZebraLink & US power cord. Order cables separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width for your convenience and feasible usability
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports fanfold media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • Custom Size - 4.25" x 39" media size for better reliance and maximum usability
Read More

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z4M00-2001-3030 Barcode Label Printer
Zebra Z4M00-2001-3030 Barcode Label Printer Zebra Z4M00-2001-3030 Barcode Label Printer Zebra Z4M00-2001-3030 Barcode Label Printer
Zebra Z4M00-2001-3030 Barcode Label Printer
Zebra Z4M00-2001-3030 Barcode Label Printer

Full specifications (PDF)
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-2001-3030 Barcode Label Printer Overview

Z4Mplus Label Printer die-cast metal thermal printer. Z4Mplus Label Printer is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business needs

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
  • TLC 39
Peel Facility:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
  • Label
Media Size:
  • Custom Size - 4.25" x 39"
  • 4.25" x Roll Paper
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord with US plug
Cables Included:
AC
Additional Information:
  • Real time clock
  • Auto-calibration
  • Auto-ranging power supply
  • Color-coded operator cues
  • Metal media cover with large clear window
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z4M00-2001-3030 Barcode Label Printer is also known as ZEB-Z4M0020013030 or Z4M0020013030.
