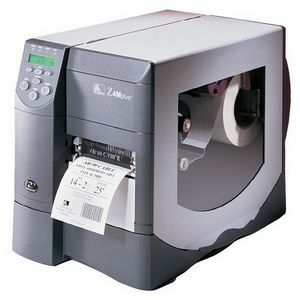

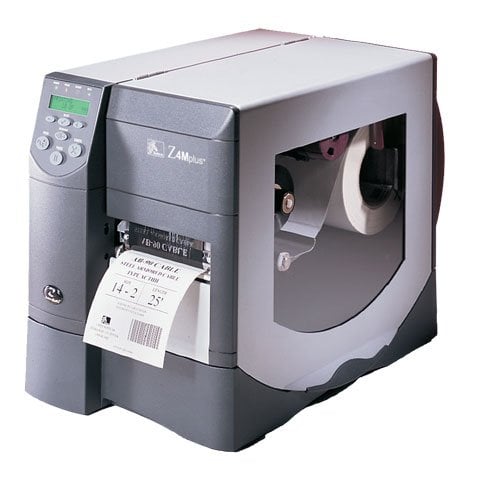

Zebra Z4M00-2001-0000 Barcode Label Printer

Zebra ZM400-2001-0000T Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZM400-2001-0000T Barcode Label Printer.
Zebra Z4M Plus - Thermal transfer & direct thermal, 203 dpi, 10 ips, 4" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink & US power cord. Order cables separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 x 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.50" maximum label width for your convenience and feasible usability
  • 105" maximum label length for dependable, desired results
  • Supports fanfold media type for maximum feasibility and better accommodation of your requirements
  • Comes with 8 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • 8" x Roll Paper media size for better reliance and maximum usability
  • LCD display is long-lasting with reduced screen burning to ensure maximum efficiency
Read More

Need a different version? See all Zebra Z4M Plus Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z4M00-2001-0000 Barcode Label Printer
Zebra Z4M00-2001-0000 Barcode Label Printer Zebra Z4M00-2001-0000 Barcode Label Printer Zebra Z4M00-2001-0000 Barcode Label Printer
Zebra Z4M00-2001-0000 Barcode Label Printer
Zebra Z4M00-2001-0000 Barcode Label Printer

Full specifications (PDF)
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-2001-0000 Barcode Label Printer Overview

Form follows function in this simple-to-operate Z4Mplus die-cast metal thermal printer. Bridge for the efficiency of centralized printer management. Upgradeable to grow with changing needs, the Z4Mplus is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business needs.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • Codabar
  • ISBT-128
  • UPC-E
  • UPC-A
  • Plessey
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Planet Code
  • Industrial 2 of 5
  • LOGMARS
  • POSTNET
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • MSI
  • Codablock
  • Micro PDF-417
  • Maxi Code
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • TLC 39
  • RSS
  • EAN-8
  • EAN-13
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Size:
  • 8" x Roll Paper
  • 3.20" x 1476 ft
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
105"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • ZBI
Software
Software Included:
  • User's CD includes Ztools Utilties:
  • ZPL II Programming Guide
  • BAR-ONE Lite/Platinum demo
  • BAR-ONE for mySAP Business Suite
  • Zebra's Universal Windows Printer Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
13.3"
Width:
18.7"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Power cord with US plug
  • Safety guide
  • User's CD
Cables Included:
AC
Additional Information:
  • 32 bit processor
  • Transmissive/reflective media sensor
  • Metal media cover with large clear window
  • Real time clock
  • Auto-calibration
  • Auto-ranging power supply
  • Color-coded operator cues
  • Ribbon width: 1" to 4.25" Peel/Cutter
  • Print Length: 165"
  • Graphic Features:
  • Supports user-defined fonts and graphics including custom logos
  • ZPL II drawing commands including boxes and lines
Certifications & Standards:
  • UL
  • CISPR
  • FCC Class B
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
