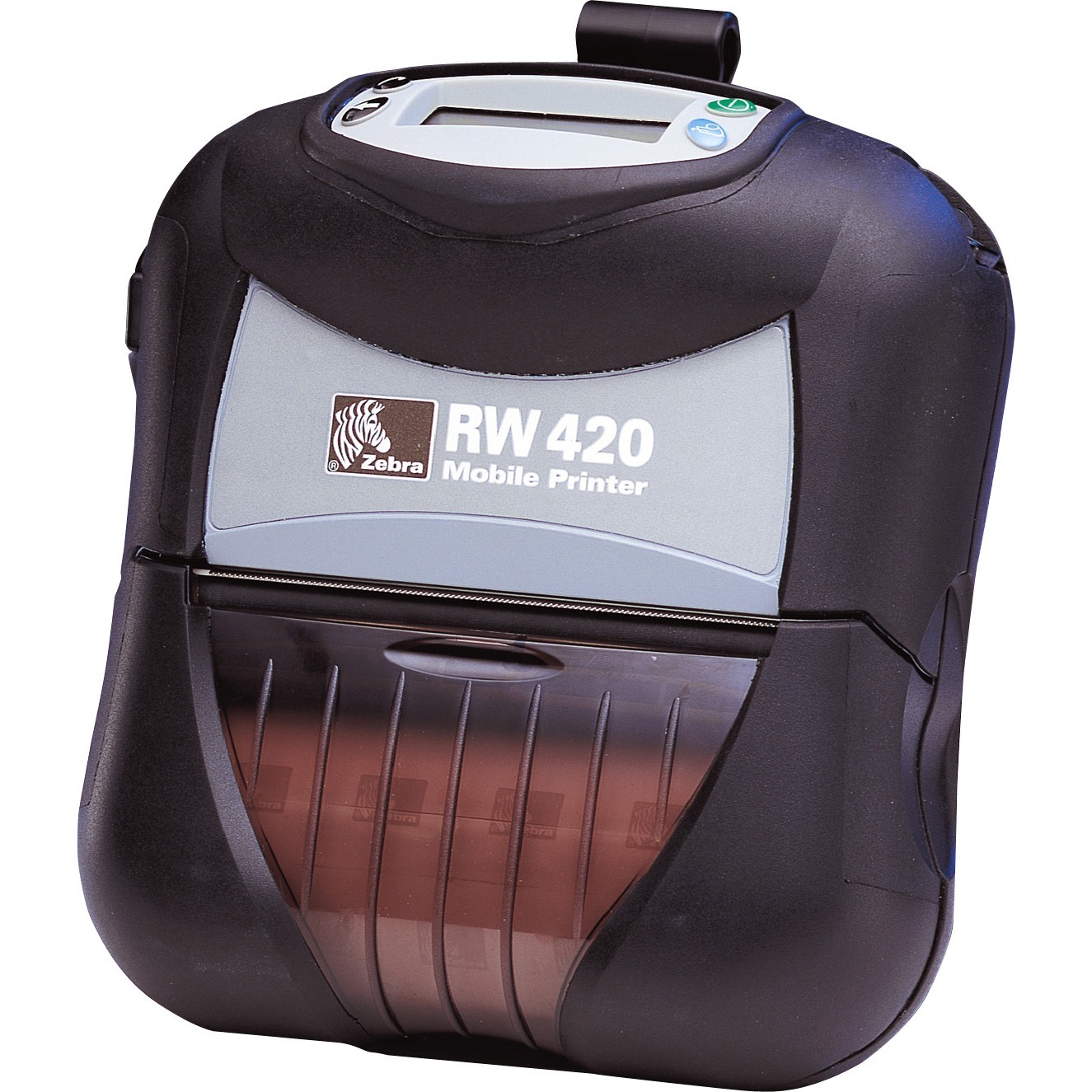

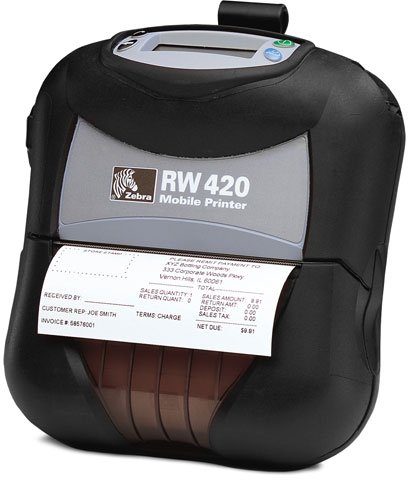

Zebra R4D-0UBA100N-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ52-AUN1000-00 Portable Barcode Printer.

Zebra RW 420 - Direct Thermal mobile printer, 203 dpi, 4" print width, USB/RS-232 interfaces, Bluetooth, Linerless Platen. Includes belt clip. Charger and interface cables sold separately, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Print Resolution

203 dpi

Max Print Width

4 inch

Direct Thermal Printer provides you with all the features that you need to print quickly and easily
203 maximum print resolution (dpi) for better reliance and added usability
The printer is capable of printing sharp and detailed monochrome documents quickly
Conveniently print your receipts
Carry your printer with you anywhere with its lightweight design
4.12" maximum label width to easily accommodate your needs with added productivity
Supports linerless media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory to make you productive with the direct thermal printer smooth performance
LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Discontinued See Replacement

Add to Quote

Zebra R4D-0UBA100N-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Zebra R4D-0UBA100N-00 Portable Barcode Printer Overview

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
EAN-8
EAN-13
EAN-14
UPC-A
UPC-E
EAN With 2 or 5 Digit Extension
UPC 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
QR Code
GS1 DataBar

Memory

Standard Memory:

16 MB

Memory Technology:

DRAM

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Bluetooth:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Linerless
Receipt
Tag
Gap
Continuous Receipt

Media Sensor:

Transmissive Media Sensor

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

4.12"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
XML

Power Description

Power Source:

Battery

Input Voltage:

7.4 V DC

Battery Information

Battery Included:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

6.3"

Depth:

Weight (Approximate):

2 lb

Miscellaneous

Package Contents:

RW 420 Receipt Printer
Battery
Belt Clip
Quick Start Guide

Platform Supported:

Certifications & Standards:

FCC Part 15 Class B
Canadian ICES-003
VCCI
NOM/NYCE
CE compliance (Class B)
C-Tick
CSA
IP54

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512

Q&A

Questions? Get help from a
Printer Expert!

The Zebra R4D-0UBA100N-00 Portable Barcode Printer is also known as ZEB-R4D-0UBA100N-00 or R4D-0UBA100N-00.
