Zebra R4D-0U0A000N-00 Portable Barcode Printer

Zebra ZQ52-AUN1000-00 Portable Barcode Printer A newer version of this item is available.
It is replaced by the Zebra ZQ52-AUN1000-00 Portable Barcode Printer.
Zebra RW 420 - Direct Thermal mobile printer, 203 dpi, 4" print width, USB/RS-232 interfaces. Includes belt clip. Charger and interface cables sold separately, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
4 inch
  • Direct Thermal Printer for maximum label/receipt printing usability and feasibility
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Carry your printer with you anywhere with its lightweight design
  • 4.12" maximum label width for dependable, desired results
  • Supports tag media type for maximum feasibility and better accommodation of your requirements
  • Belt Clip feature for better reliance and usability
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

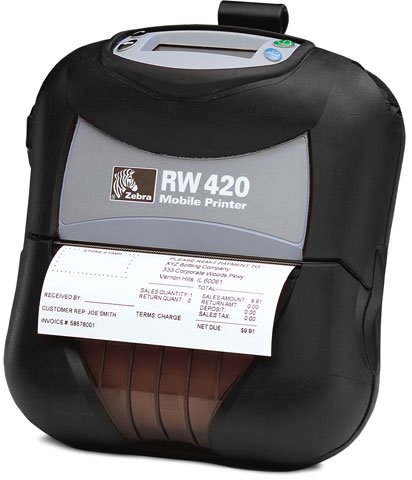

Zebra RW 420 Portable Barcode Printer Model Overview
Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
Zebra R4D-0U0A000N-00 Portable Barcode Printer Overview

The Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design makes it more versatile. Resilient and lightweight, these IP54 certified printers can withstand the harsh demands of a number of route accounting and field service printing applications, including Invoices, Delivery receipts, Service estimates, Sales orders, Inventory management, Mobile point of sale and DEX.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • FIM
  • POSTNET
  • Interleaved 2 of 5
  • MSI
  • Codabar
  • PDF-417
  • Data Matrix
  • Maxi Code
  • RSS
  • GS1 DataBar
  • QR Code
  • Aztec Code
Features:
Belt Clip
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Tag
  • Gap
  • Continuous Receipt
  • Continuous Form
  • Synthetic Media
  • UV Coated Media
  • Label
  • Receipt
Media Sensor:
Transmissive Media Sensor
Media Thickness:
6.30 mil
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.12"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • ZPL
  • EPL
  • XML
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
6.9"
Width:
6.3"
Depth:
3"
Miscellaneous
Package Contents:
  • RW 420 Network Thermal Label Printer
  • Battery
Additional Information:
  • LCD
  • Rugged design
  • Enhanced battery management
  • Advanced 32-bit architecture for high speed processing
  • International Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
  • Regional Grouping Codes: (US/Canada/Australia/New Zealand/Mexico/Nicaragua)
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017476575, 0783555033234, 0807027543554, 0853585466774
UPC: 682017476575, 783555033234, 807027543554, 853585466774
EAN: 0682017476575, 0783555033234, 0807027543554, 0853585466774
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R4D-0U0A000N-00 Portable Barcode Printer is also known as ZEB-R4D-0U0A000N-00 or R4D-0U0A000N-00.
