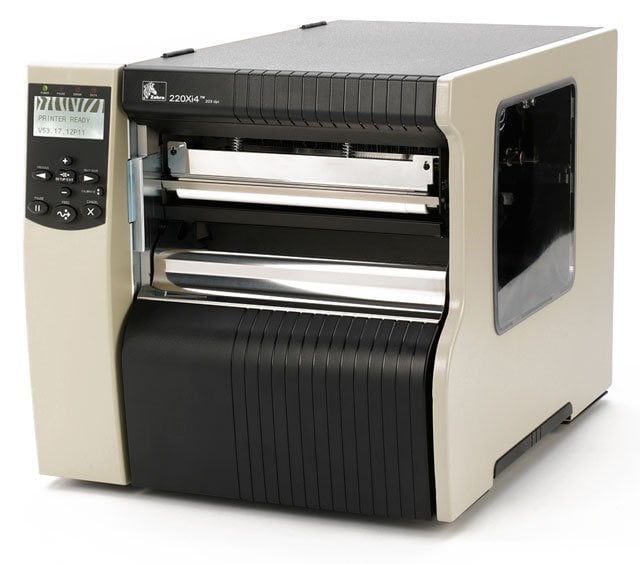

Zebra 220-801-00000 Barcode Label Printer

Zebra 220Xi4 - Industrial Printer, Zebra 220Xi4, Thermal Transfer, 203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger. Includes power supply. Cables sold separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, USB, Serial, Internal Print Server

Print Resolution

203 dpi

Printer Options

Tear Bar

Max Print Width

8 inch

Label Core Size

3 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
203 maximum print resolution (dpi) for your convenience and easy usage
Produce high-quality documents with this monochrome printer to increase your productivity
Enjoy the optimal performance in today's on-demand labeling applications
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
8.80" maximum label width for dependable, desired results
12.50 ft maximum label length for your convenience and feasible usability
Supports black mark media type for better reliance and maximum usability
LCD Display feature for better reliance and usability
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra 220Xi4 Barcode Label Printers

$6,752.45

In Stock

Recommended TrueSupport Coverage (/mo.)

Quantity	Unit Price	Discount
2	$6,389.02	1% OFF
5	$6,259.95	3% OFF

Add to Quote

Zebra 220-801-00000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 220Xi4 Barcode Label Printer Model Overview

Zebra's built-to-last 220Xi4 printers give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The 220Xi4 is renowned for its incredible durability, consistently outstanding print quality, fast print speed, long life and unparalled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.

Zebra 220-801-00000 Barcode Label Printer Overview

Designed to produce large labels at 203 dpi resolution, the 220Xi4 Thermal Label Printer is ideal for industrial applications such as chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

8.50"

Barcode Symbology Supported:

Code 11
Code 39
Code 93
Code 128
Code 128-B
Code 128-A
Code 128-C
Code 128 UCC
UPC-A
UPC-E
EAN-8
EAN-13
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
POSTNET
Standard 2 of 5
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Codabar
Codablock
PDF-417
Code 49
Data Matrix
Maxi Code
QR Code
TLC 39
Micro PDF
Aztec Code
RSS
GS1 DataBar

Features:

LCD Display

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Black Mark
Continuous Form
Roll Fed
Die-cut Label
Fanfold

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

12 mil

Maximum Roll Diameter:

3.20"

Maximum Label Width:

8.80"

Maximum Label Length:

12.50 ft

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

XML
ZPL II

Power Description

Input Voltage:

110 V AC

Physical Characteristics

Height:

15.5"

Width:

15.8"

Depth:

20.4"

Miscellaneous

Package Contents:

220Xi4 Thermal Label Printer
North American Edition Power Cord
Xi4 User's Guid
ZebraNet Connectivity CD

Cables Included:

Additional Information:

Auto calibration
Unicode Compliant
Intelligent printhead
300 unique darkness settings
Improved head test for element out
Construction: 12-gauge steel frame
Single 32 bit 133 Mhz RISC processor
Multi-level Element Energy Equalizer
Clear Media Side Door and Media Hanger
Automatic media/ribbon sensing capability
Mirror feature allows user-defined printer configurations to be retrieved from the network

Platform Supported:

Country of Origin:

China

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0682017477534, 0778889965528, 0783555040799, 4913383188776

UPC: 682017477534, 778889965528, 783555040799, 807027540775

EAN: 0682017477534, 0778889965528, 0783555040799, 4913383188776

UNSPSC: 43212108
