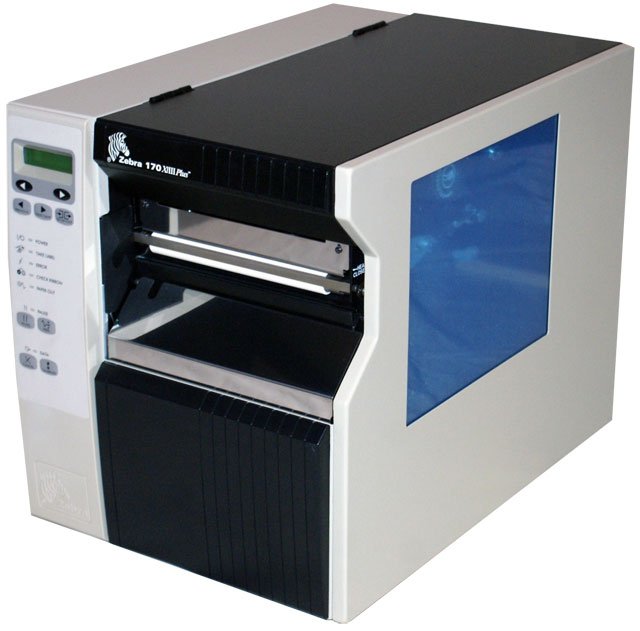

Zebra 172-741-00000 Barcode Label Printer

The Zebra 172-741-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170XiIIIPlus - Direct Thermal/Thermal Transfer printing, RFID ready, 203 dpi, 6.6" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power supply. Interface cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 200 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
  • 7.10" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous tape media type for dependable, efficient results with maximum productivity
  • Comes with 16 MB standard memory for timely printing with added reliability
  • 8" x Roll Paper media size for dependable, efficient results with maximum productivity
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 172-741-00000 Barcode Label Printer Overview

The industrial-strength 170XiIIIPlus with 203-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 8 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • UCC
  • Codabar
  • ISBT-128
  • Planet Code
  • UPC-A
  • EAN-8
  • Plessey
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • RSS
  • UPC-E
  • EAN-13
  • POSTNET
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • MSI
  • LOGMARS
  • Codablock
  • Maxi Code
  • TLC 39
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Tape
  • Die-cut Label
  • Black Mark
  • Label
Media Size:
  • 8" x Roll Paper
  • 3.20" x 1476 ft
  • 3.20" x 984 ft
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Software
Software Included:
  • Ztools Utilities
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
  • ZebraNet WebView and Alert Utilities
  • Adobe Acrobat
  • Direct Zebra Web Access
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
219.10 W
Standby Power Consumption:
18.60 W
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Ribbon width: 2" to 6.7"
  • Advanced media/ribbon counter
  • Enhanced Alert notification monitors printhead condition
  • 300 unique darkness settings
  • ATA style PCMCIA socket
  • CompactFlash socket
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Clear Media Side Door & Media Hanger
  • Operating Temperature:
  • Direct Thermal: 41 to 104 Degree Fahrenheit
  • Thermal Transfer: 32 to 104 Degree Fahrenheit
Certifications & Standards:
  • BSMI
  • CB
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 172-741-00000 Barcode Label Printer is also known as ZEB-17274100000 or 172-741-00000.
