Zebra 172-701-00000 Barcode Label Printer

The Zebra 172-701-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

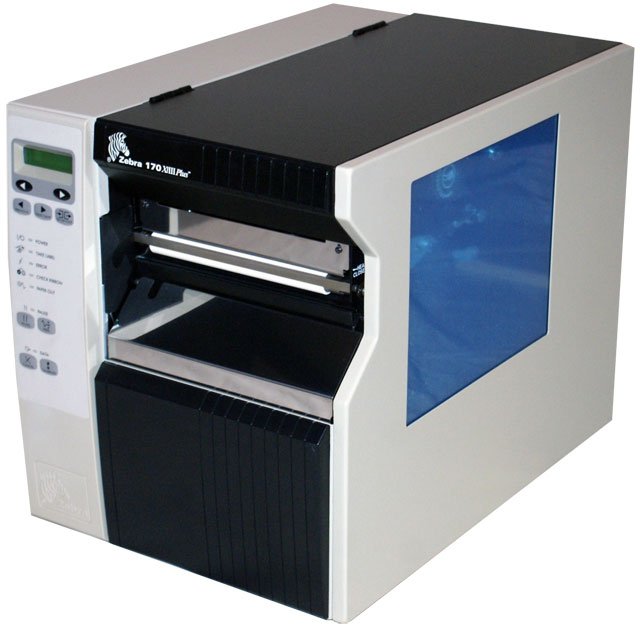

Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (203 dpi, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Enjoy maximum efficiency with label print printing
  • 7.10" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for dependable, efficient results with maximum productivity
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra 170XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 172-701-00000 Barcode Label Printer
Zebra 172-701-00000 Barcode Label Printer Zebra 172-701-00000 Barcode Label Printer Zebra 172-701-00000 Barcode Label Printer
Zebra 172-701-00000 Barcode Label Printer
Zebra 172-701-00000 Barcode Label Printer

Full specifications (PDF)

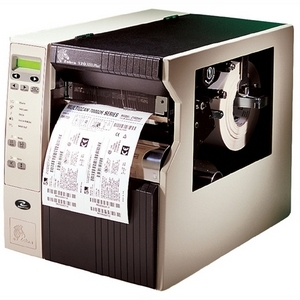

Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 172-701-00000 Barcode Label Printer Overview

The industrial-strength 170XiIIIPlus with 203-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 8 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Clear Media Side Door & Media Hanger
  • North American Edition, 120 VAC Cord
  • Advanced media/ribbon counter
  • Enhanced Alert notification - monitors printhead condition
  • 300 unique darkness settings
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CB
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 172-701-00000 Barcode Label Printer is also known as ZEB-17270100000 or 172-701-00000.
