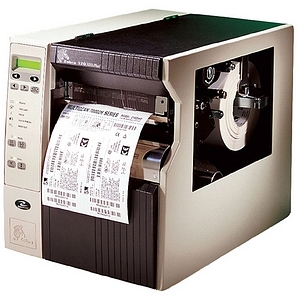

Zebra 170-7A1-00100 Barcode Label Printer

The Zebra 170-7A1-00100 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 7.10" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • Custom Size - 7.10" - Roll Paper media size for dependable, efficient results with maximum productivity
Read More

Need a different version? See all Zebra 170XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 170-7A1-00100 Barcode Label Printer
Zebra 170-7A1-00100 Barcode Label Printer Zebra 170-7A1-00100 Barcode Label Printer Zebra 170-7A1-00100 Barcode Label Printer
Zebra 170-7A1-00100 Barcode Label Printer
Zebra 170-7A1-00100 Barcode Label Printer

Full specifications (PDF)
Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 170-7A1-00100 Barcode Label Printer Overview

The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications. 170XiIIIPlus Label printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
  • Codabar
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
  • Label
Media Size:
  • Custom Size - 7.10" - Roll Paper
  • 2" x Roll Paper
  • 7.10" x Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus Label Printer
  • North America Edition Cord
  • User's Guide
  • Ztools Utilities
  • ZPL II Programming Guide
  • Zebra Designer
  • Zebra Designer Pro
  • Universal Windows Printer Driver
  • ZebraNet WebView and Alert Utilities
  • Adobe Acrobat
  • Direct Zebra Web Access
  • ZebraNet Connectivity CD
  • PS10/100 Print Server
Additional Information:
  • Unicode -Compliant
  • Advanced media/ribbon counter
  • Clear Media Side Door and Media Hanger
  • Transmissive and reflective media sensors
  • North American Edition, 120 VAC Power Cord
  • Enhanced Alert notification monitors printhead condition
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1
  • EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 170-7A1-00100 Barcode Label Printer is also known as ZEB-1707A100100 or 170-7A1-00100.
