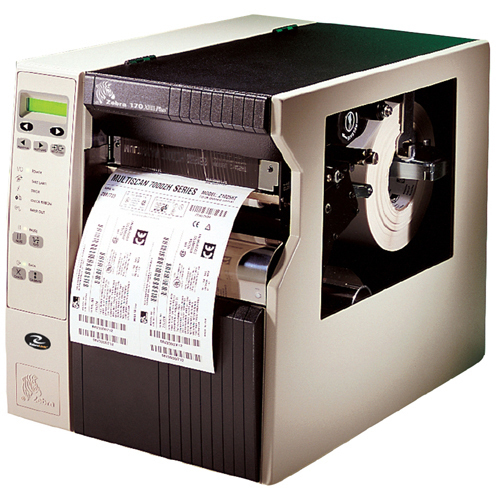

Zebra 170-7A1-00010 Barcode Label Printer

The Zebra 170-7A1-00010 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 64MB Flash, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet

Print Resolution

300 dpi, 305 dpi

Max Print Width

7 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
300 maximum print resolution (dpi) for your convenience and easy usage
Produce high-quality documents with this monochrome printer to increase your productivity
Enjoy the optimal performance in today's on-demand labeling applications
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
Supports continuous form media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra 170XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra 170-7A1-00010 Barcode Label Printer

Overview

Full specifications (PDF)

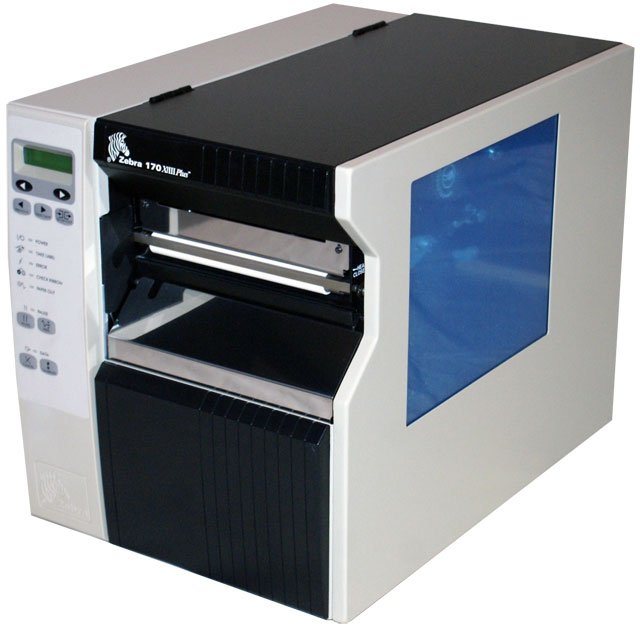

Zebra 170XiIIIPlus Barcode Label Printer Model Overview

The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.

Zebra 170-7A1-00010 Barcode Label Printer Overview

The industrial strength 170XiIIIPlus with 300 dpi print resolution can print large volumes labels up to 6.6 inches wide at 8 inches per second, promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels, product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

6.60"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
EAN-8
EAN-13
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
POSTNET
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
ISBT-128
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
TLC 39
Micro PDF
Aztec Code

Memory

Standard Memory:

16 MB

Memory Technology:

DRAM

Flash Memory:

64 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Black Mark

Maximum Roll Diameter:

Power Description

Input Voltage:

110 V AC

Physical Characteristics

Height:

15.5"

Width:

13.2"

Depth:

19.5"

Miscellaneous

Package Contents:

170XiIIIPlus Network Thermal Label Printer
User's Guide
Software CD

Additional Information:

Unicode -Compliant
Clear Media Side Door
Advanced media/ribbon counter
Bi-fold media door with clear panel
North American Edition, 120 VAC Cord
Transmissive and reflective media sensors
Enhanced Alert notification monitors printhead condition

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 170-7A1-00010 Barcode Label Printer is also known as ZEB-1707A100010 or 170-7A1-00010.
