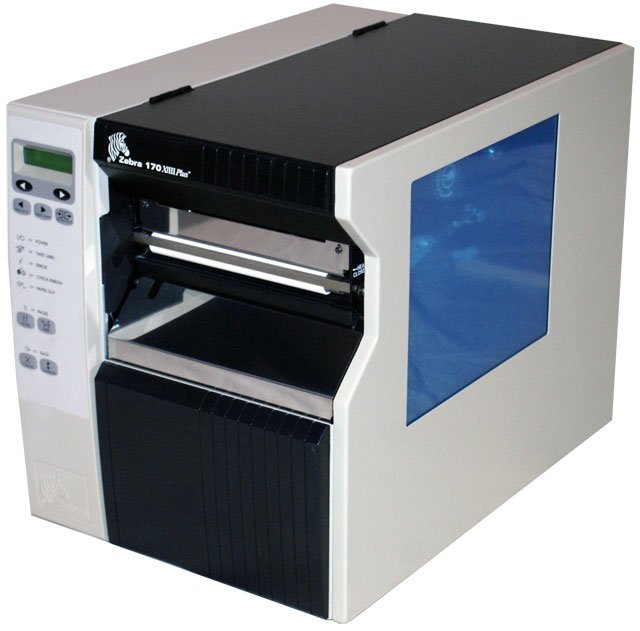

Zebra 170-741-00100 Barcode Label Printer

The Zebra 170-741-00100 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Printer Options

Cutter

Max Print Width

7 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
300 maximum print resolution (dpi) for your convenience and easy usage
Delivers high-speed, hassle-free labeling solution for your business needs
7.10" maximum label width for your convenience and feasible usability
39" maximum label length for your convenience and feasible usability
Supports continuous form media type for better reliance and maximum usability
Cutter effectively designs a line around your design to help determine what specific shape you're after to ensure maximum dependability
Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage

Need a different version? See all Zebra 170XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra 170-741-00100 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 170XiIIIPlus Barcode Label Printer Model Overview

The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.

Zebra 170-741-00100 Barcode Label Printer Overview

The industrial-strength 170XiIIIPlus with 300-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 12 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

6.60"

Barcode Symbology Supported:

Code 11
Code 39
Code 93
EAN-8
EAN-13
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
ISBT-128
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
RSS
TLC 39
Micro PDF
Aztec Code
Codabar

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Black Mark

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

120 mil

Maximum Roll Diameter:

Maximum Label Width:

7.10"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II

Software

Software Included:

Xi IIIPlus User's Guide
ZPL II Programming Guide
Ztools Utilities
Zebra Designer
Zebra Designer Pro
BAR-ONE for R/3 (mySAP.com)
Zebra's Universal Windows Printer Driver
ZebraNet WebView and Alert Utilities
Adobe Acrobat
Direct Zebra Web Access
ZebraNet Connectivity for PSII

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

15.5"

Width:

13.2"

Depth:

19.5"

Miscellaneous

Package Contents:

170XiIIIPlus Label Printer
Xi IIIPlus User's Guide
Utility & Driver CD
ZebraNet Connectivity CD
North American Edition Power Cord

Cables Included:

Additional Information:

Clear Media Side Door & Media Hanger
North American Edition, 120 VAC Power Cord
Operating temperature 41° F (5° C) to 104° F (40° C) Thermal transfer
Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Support user-defined fonts and graphics - including custom logos
ZPLII drawing commands - including boxes, circles, and diagonal lines
Unicode -Compliant
Advanced media/ribbon counter
Enhanced Alert notification monitors printhead condition
Transmissive and reflective media sensors

Platform Supported:

Certifications & Standards:

BSMI
CB
CCC
CE
C-Tick
cUL
EN55022 Class B
EN55024
EN6100-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1 / EN60950
NOM
S Mark
VCCI
ZIK
R.O.C. CNS 13438
Australia AS/NZS 3548
Argentina 92/98 Phase 3
Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 170-741-00100 Barcode Label Printer is also known as ZEB-170-741-00100 or 170-741-00100.
