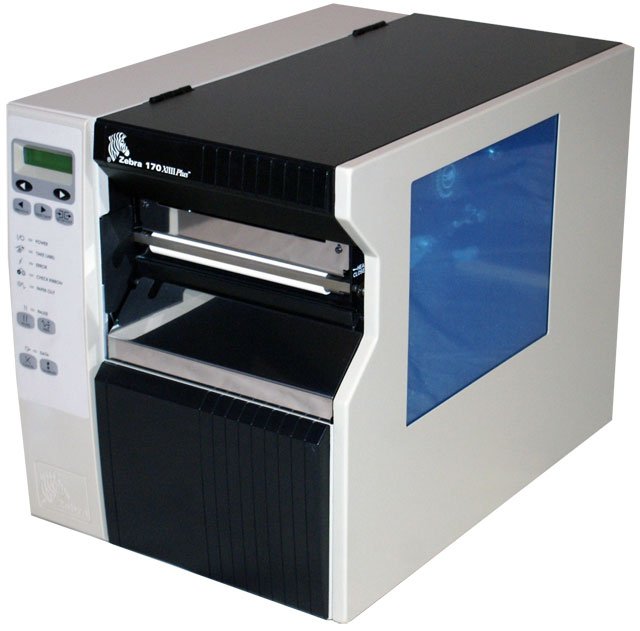

Zebra 170-741-00000 Barcode Label Printer

The Zebra 170-741-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
305 dpi
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 6.60" maximum label width for your convenience and feasible usability
  • 39" maximum label length for your convenience and feasible usability
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More
Discontinued Need Assistance?
Add to Quote
Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 170-741-00000 Barcode Label Printer Overview

Providing superior performance, longevity, and solid vaulue, the 170XiIIIPlus offers rugged durability, dependability, and unparalleled reliablility in high-volume, mission-critical and specialty labeling solutions. Insuring investment protection are key features and options, such as 203 and 300 dpi resolution for paper,synthetic, and specialty stocks; a 32 bit processor for fast throughput and processing; increased memory for label formats, graphics, fonts and data; and early warning notification for printhead maintenance support. 170XiIIIPlus printer also offer more connectivity options then competitors, including XML-enabled printing, ZebraNet wireless and wired print servers, and USB 2.0. Its easy to see why 170XiIIIPlus printer take high performance to an all new level.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
12 in/s
Maximum Print Width:
6.60"
Memory
Standard Memory:
16 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
6.60"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170Xiii Plus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Certifications & Standards:
  • Class B
  • FCC Class B
  • EN55024: 1998
  • R.O.C. CNS 13438
  • Canadian ICES-003
  • Australia AS/NZS 3548
  • EN55022: 1998 Class B
  • Argentina 92/98 Phase 3
  • EN61000-3-2,3 W/amendment A12
  • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
  • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0732387103264
UPC: 732387103264
EAN: 0732387103264
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 170-741-00000 Barcode Label Printer is also known as ZEB-170XIIII+PSII or 170-741-00000.
