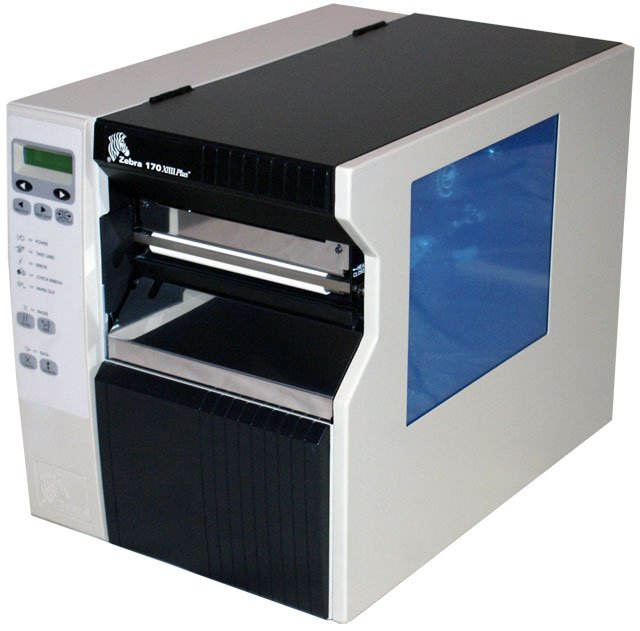

Zebra 170-701-00201 Barcode Label Printer

The Zebra 170-701-00201 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Rewinder, Clear Media Side Door & 3" Media Spindle). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 7.10" maximum label width for your convenience and feasible usability
  • Supports continuous form media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
  • Custom Size media size for dependable, efficient results with maximum productivity
Read More

Need a different version? See all Zebra 170XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 170-701-00201 Barcode Label Printer
Zebra 170-701-00201 Barcode Label Printer Zebra 170-701-00201 Barcode Label Printer Zebra 170-701-00201 Barcode Label Printer
Zebra 170-701-00201 Barcode Label Printer
Zebra 170-701-00201 Barcode Label Printer

Full specifications (PDF)
Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 170-701-00201 Barcode Label Printer Overview

The industrial strength 170XiIIIPlus with 300 dpi print resolution can print large volumes labels up to 6.6 inches wide at 8 inches per second, promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 93
  • Code 39
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Peel Facility:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Size:
Custom Size
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus Thermal Label Printer
  • User Guide
  • Utilities & Driver CD
  • Power Cord For North America
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • Clear Media Side Door
  • Advanced media/ribbon counter
  • Transmissive and reflective media sensors
  • Enhanced Alert notification monitors printhead condition
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 170-701-00201 Barcode Label Printer is also known as ZEB-17070100201 or 170-701-00201.
