Zebra 170-701-00200 Barcode Label Printer

The Zebra 170-701-00200 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Rewinder, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Printer Options
Rewinder
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 6.60" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for dependable, efficient results with maximum productivity
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
  • LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

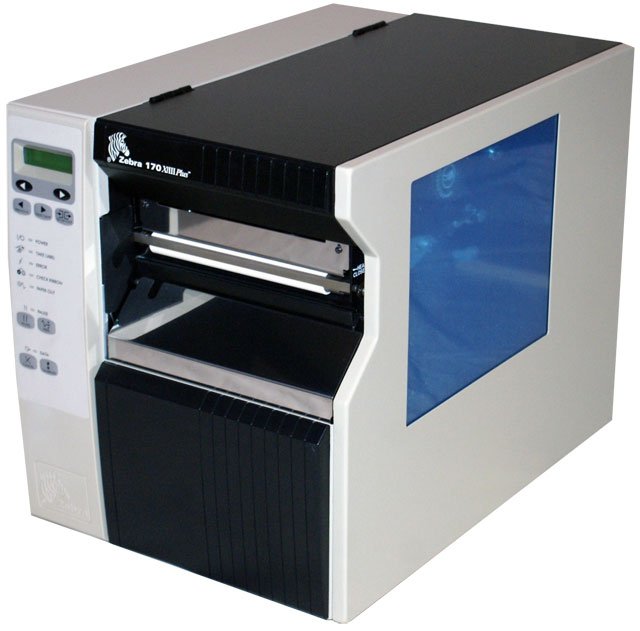

Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 170-701-00200 Barcode Label Printer Overview

Providing superior performance, longevity, and solid vaulue, the 170XiIIIPlus offers rugged durability, dependability, and unparalleled reliablility in high-volume, mission-critical and specialty labeling solutions. Insuring investment protection are key features and options, such as 203 and 300 dpi resolution for paper,synthetic, and specialty stocks; a 32 bit processor for fast throughput and processing; increased memory for label formats, graphics, fonts and data; and early warning notification for printhead maintenance support. 170XiIIIPlus printer also offer more connectivity options then competitors, including XML-enabled printing, ZebraNet wireless and wired print servers, and USB 2.0. Its easy to see why 170XiIIIPlus printer take high performance to an all new level.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • Standard 2 of 5
  • UPC-A
  • UPC-E
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • UPC
  • EAN With 2 or 5 Digit Extension
  • Aztec Code
  • Maxi Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • POSTNET
  • UCC
Rewinder:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
6.60"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Software
Software Included:
  • Ztools Utilities
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
  • Adobe Acrobat
  • Windows Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170Xiii Plus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Clear Media Side Door & Media Hanger
  • North American Edition, 120 VAC Cord
  • 12-gauge steel frame
  • Advanced media/ribbon counter
  • Enhanced Alert notification -- monitors printhead condition
  • 300 unique darkness settings
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality

Operating Temperatures:

  • TT: Operating temperature 41° F (5° C) to 104° F (40° C) Thermal transfer
  • DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Platform Supported:
PC
Certifications & Standards:
  • Class B
  • FCC Class B
  • EN55024: 1998
  • R.O.C. CNS 13438
  • Canadian ICES-003
  • Australia AS/NZS 3548
  • EN55022: 1998 Class B
  • Argentina 92/98 Phase 3
  • EN61000-3-2,3 W/amendment A12
  • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
  • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 170-701-00200 Barcode Label Printer is also known as ZEB-170XIIII+REW or 170-701-00200.
