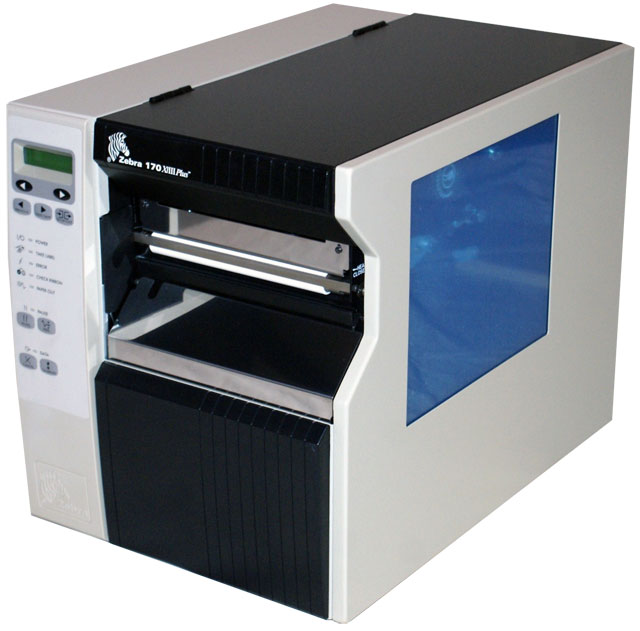

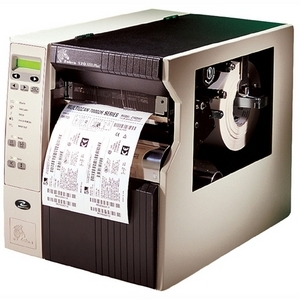

Zebra 170-701-00100 Barcode Label Printer

The Zebra 170-701-00100 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Printer Options
Cutter
Max Print Width
7 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 7.10" maximum label width for dependable, desired results
  • 39" maximum label length for your convenience and feasible usability
  • Supports continuous form media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory for timely printing with added reliability
  • 2" x Roll Paper media size for better reliance and maximum usability
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra 170XiIIIPlus Barcode Label Printer Model Overview
The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 170-701-00100 Barcode Label Printer Overview

The industrial-strength 170XiIIIPlus can print large volumes labels, promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
  • Codabar
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Size:
  • 2" x Roll Paper
  • 7.10"
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • Advanced media/ribbon counter
  • Clear Media Side Door & Media Hanger
  • Transmissive and reflective media sensors
  • North American Edition, 120 VAC Power Cord
  • Enhanced Alert notification monitors printhead condition
  • Support user-defined fonts and graphics - including custom logos
  • ZPLII drawing commands - including boxes, circles, and diagonal lines
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CB
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 170-701-00100 Barcode Label Printer is also known as ZEB-170XIIII+CUT or 170-701-00100.
