Unitech MSR206-33

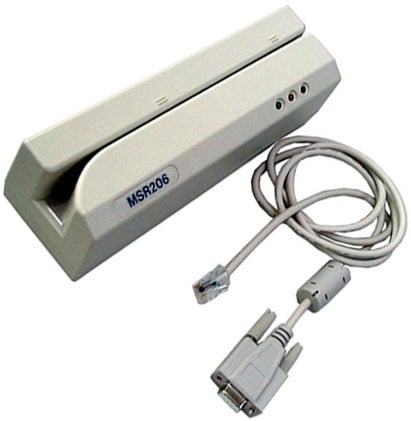

Unitech MSR206 Credit Card Reader Model Overview
The MSR206 Manual Swipe Magnetic Card Reader/Writer is a reliable and versatile solution for reading and writing magnetic stripe cards, compliant with ISO 7811 formats. With the capability to handle up to three tracks of data simultaneously, this device supports a wide range of applications, including credit card verification. Engineered for performance, it offers a swift swipe speed of 5-55 inches per second, making transactions smooth and efficient. The MSR206's robust construction ensures durability, backed by a three-year warranty and certification from ISO 9001, CE, FCC, UL, and CUL.
Key Features:
- ISO Compliance: Reads/writes magnetic stripe cards in ISO 7811 formats.
- High Performance: Operates at 5-55 ips with precise data handling.
- Versatile Applications: Ideal for diverse card-related tasks including credit card swipes.
- Durable Design: Manufactured in an ISO 9001 certified facility with a robust build.
- Three-Year Warranty: Enjoy peace of mind with a reliable warranty.
Specifications:
- Electrical:
- Operating voltage: +24VDC +/- 5%
- Power Consumption: Typical 350mA Max.
- Communication: Standard RS232 signal levels
- Ripple: 50mVp-p or less
- Mechanical:
- Body Material: PC 94V-0
- Dimensions: 210(L) x 60(W) x 65(H) mm
- Weight: Approx. 1.5kg
- Swipe: Manual, single direction
- Environmental:
- Operation: 14° to 131° F (10 to 85% humidity)
- Storage: -22° to 158° F (10 to 90% humidity)
- Performance:
- Read Speed: 5-55 ips
- Write Speed: 5-30 ips
- Error Rate: Read <0.5%, Write <0.8%
- Head Life: Min. 1,000,000 swipes
The MSR206 Magnetic Stripe Reader is designed to offer manual swipe card reading/writing solution for ISO 7811-6 formats. The MSR206 reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously. MSR206 provides a standard RS-232 interface to communicate with a host system or other terminal computers and is ideal for credit card verification and various card related applications.
Magnetic Stripe Type: Card
Magnetic Stripe Configuration: Triple Track 1, 2 & 3
Swipe Speed: 5 to 55 in/sec
Magnetic Head Life: 1000K
Interfaces/Ports: RS-232
Agency Approvals:
- FCC Class B
- CE class B
- UL
- cUL
Recommended Accessories
Category
- Cables, Connectors, and Adapters (2)
- Credit Card Reader Accessories (3)
- Power Device (2)
Recommended Accessories for Model: Unitech MSR206-33
Top Cables, Connectors, and Adapters Purchased With Unitech MSR206-33
-
Unitech 5610679000 Cables, Connectors, and AdaptersCable, Unitech RS232, 68", Straight, Beige, for MSR206$18.20 -
Unitech 5611481000-R Cables, Connectors, and AdaptersCable, Unitech USB Data Transfer Cable for MSR206$25.12
Top Credit Card Reader Accessories Purchased With Unitech MSR206-33
-
Unitech 3290001000 AccessoryPower Supply for the MSR206 only.$24.29 -
Unitech 400140-Z010 AccessoryMS140 Mounting Brackets (set of 2)Please Call for Pricing or to Purchase -
Unitech 5200-381680G AccessoryMOUNTING KIT FOR MS146$6.50
Top Power Device Purchased With Unitech MSR206-33
-
Unitech 101000-0150 Power DevicePower Supply, Unitech Power Adapter, 110V for RS232 CCD Scanner$33.15 -
Unitech 1010-601873G Power DevicePower Supply, Unitech Universal AC Adapter for Scanners$13.00
