Unitech MS830-WUG Barcode Scanner

Unitech MS840-SUCB00-SG Barcode Scanner A newer version of this item is available.
It is replaced by the Unitech MS840-SUCB00-SG Barcode Scanner.

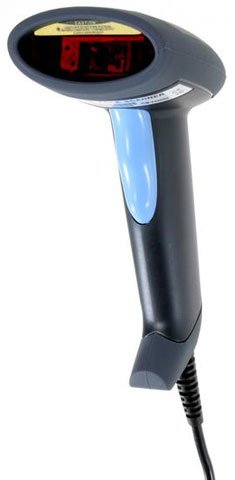

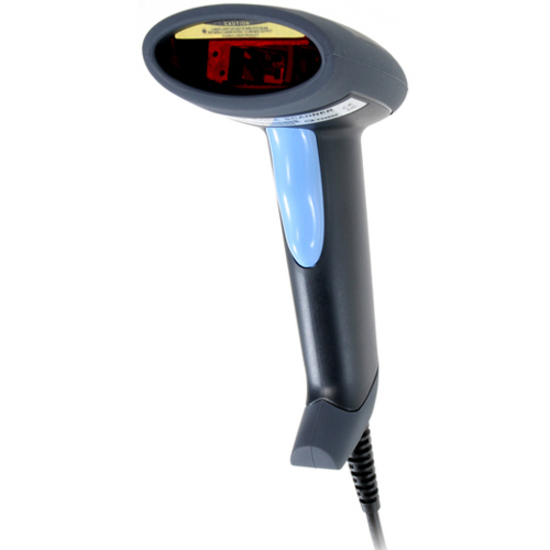

Unitech MS830 - Unitech MS830 Bar Code Reader - Wired
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 40 scan/s
Read More
Discontinued See Replacement
Add to Quote
Unitech MS830 Barcode Scanner Model Overview
Sleek and lightweight, the Unitech MS830 can withstand multiple 5 foot drops onto concrete floors, thanks to its surrounding rubber nose and bumper. The MS830's high speed scanning, low power consumption and effective depth of field, make the Unitech MS830 suitable for a wide range of applications. Furthermore, our powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and money by making software changes unnecessary.
Unitech MS830-WUG Barcode Scanner Overview

Its high speed scanning, low power consumption and effective depth of field, make the MS830 Bar Code Reader suitable for a wide range of applications. Furthermore, it's powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and money by making software changes unecessary. The MS830 is the right scanner for office automation, retail and light industrial applications.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
Light Source:
Laser
Scan Rate:
40 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1.57" - 5.1"@5mil - Code 39
  • 1.38" - 5.9"@6mil - Code 39
  • 1.97" - 13"@15.6mil - JAN
  • 1.18" - 29.9"@40mil - Code 39
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.9"
Width:
2.9"
Depth:
4.9"
Weight (Approximate):
5.50 oz
Miscellaneous
Package Contents:
  • MS830 Bar Code Reader
  • USB Interface Cable
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB

USB Cable separate

Certifications & Standards:
  • CE
  • FCC
  • BSMI
  • RoHS Compliant
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Unitech MS830-WUG Barcode Scanner is also known as UNI-MS830WU or MS830WUG.
