Unitech MS300 – Barcode Scanner – 1D

Part Number: MS300-1
Model: MS300
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  2.6 inch scanning width, Decoded (Scanner only - must order cables separately)
Explore all Unitech MS300 Barcode Scanners
Add to Quote
Unitech MS300-1 Barcode Scanner
Unitech MS300-1 Barcode Scanner
Full specifications (PDF)

Unitech MS300 Barcode Scanner Model Overview

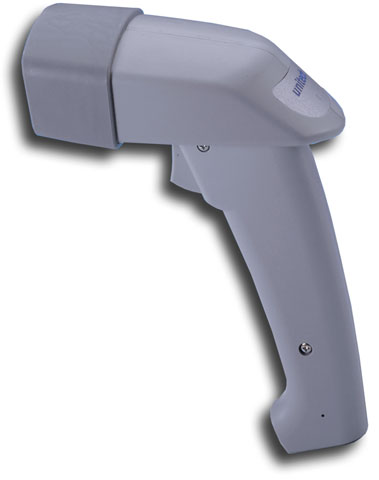

The MS300 CCD Scanner competes with laser scanners on both design and performance. Its ergonomic gun action design fits comfortably into the operators hand. The MS300 delivers superior reading performance to read barcodes at distances of up to 13.8 inches, and decode them at a rate of 45 scans per second.
Unitech MS300-1 Barcode Scanner Overview

The MS300 CCD reader is a reliable, gun-type CCD bar code reader suitable for a wide range of environments in retail, medical and light industrial applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved 2 of 5
  • Standard 2 of 5
  • EAN 128
  • Code 11
  • MSI/Plessey
  • Code 128
  • Toshiba
  • EAN 128
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
45 scan/s
Maximum Scan Resolution:
4 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
6.3"
Width:
2.4"
Depth:
4.2"
Weight (Approximate):
5.20 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • PC XT/AT
  • PS/2
  • Keyboard Wedge interface
  • RS-232
  • Wand Emulation
  • Keyboard Wedge for IBM

USB Cable separate

Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
