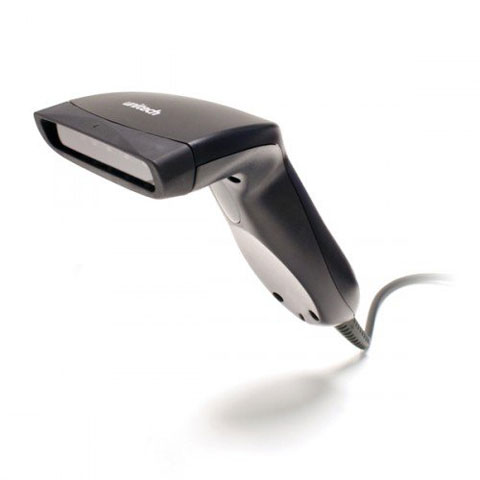

Unitech MS180 – Barcode Scanner – Corded – 1D

Part Number: MS180-1UBG
Model: MS180
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  Unitech MS180 Bar Code Reader - Wired - CCD
Explore all Unitech MS180 Barcode Scanners
Add to Quote
Unitech MS180-1UBG Barcode Scanner
Unitech MS180-1UBG Barcode Scanner
Unitech MS180-1UBG Barcode Scanner
Unitech MS180-1UBG Barcode Scanner
Unitech MS180-1UBG Barcode Scanner
Unitech MS180-1UBG Barcode Scanner Unitech MS180-1UBG Barcode Scanner Unitech MS180-1UBG Barcode Scanner Unitech MS180-1UBG Barcode Scanner

Full specifications (PDF)

Unitech MS180 Barcode Scanner Model Overview

The Unitech MS180 features a flexible, multiple interface design that supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals with an interchangeable cable. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. MS180's powerful built-in decoder reads and discriminates all major symbologies, thereby reducing processing time while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device and hence reduces the labour costs.
Unitech MS180-1UBG Barcode Scanner Overview

The MS180 Bar Code Reader is a flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and 16 popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports eight different character sets.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 39
  • Code 39 Full ASCII
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • Delta Code
  • EAN-13 with Add-on Code
  • EAN-8 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
45 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1"
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.4"
Width:
3.5"
Depth:
3.2"
Weight (Approximate):
4.40 oz
Miscellaneous
Package Contents:
  • MS180 Bar Code Reader
  • USB Cable
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Wand Emulation
  • Serial
  • USB

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • RoHS
  • CE
  • FCC Class A
  • BSMI
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0748135014034, 0777785866243, 0853585480381
UPC: 748135014034, 777785866243, 853585480381
EAN: 0748135014034, 0777785866243, 0853585480381
UNSPSC: 43211701
