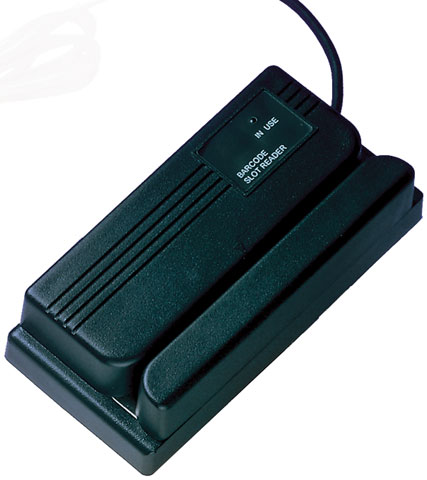

MS140-3 Barcode Card Reader

Part Number: MS140-3
Model: MS140
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
China Postal CodeCodabarCode 11Code 32Code 39 (full ASCII)Code 39 (Standard)Code 93Code 128Delta CodeEAN-8 with add-on codeEAN-13 with add-on codeEAN 128Interleaved 2 of 5ISBN / Bookland EANISBT 128Italian PharmacyLabel Code IVLabel Code VMSI / PlesseyStandard 2 of 5Toshiba CodeUPC-A with add-on codeUPC-E with add-on code
Light Source
LED

Product Description:

  Unitech MS140-3 Bar Code Slot Reader - Photo Diode
Explore all Unitech MS140 Barcode Card Readers
Add to Quote
MS140-3 Barcode Card Reader
MS140-3 Barcode Card Reader
MS140-3 Barcode Card Reader
MS140-3 Barcode Card Reader MS140-3 Barcode Card Reader

Full specifications (PDF)

Unitech MS140 Barcode Card Reader Model Overview

The Unitech MS140 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15mm), the MS140 is capable of reading any barcoded identification badge.
MS140-3 Barcode Card Reader Overview

The MS140-3 Bar Code Slot Reader is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140-3 is capable of reading any bar coded identification badge.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (full ASCII)
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with add-on code
  • EAN-13 with add-on code
  • EAN 128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI / Plessey
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with add-on code
  • UPC-E with add-on code
Light Source:
LED
Maximum Scan Resolution:
6 mil
Depth of Field:
  • 2mm
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Form Factor:
Swipe
Height:
1.3"
Width:
2.4"
Depth:
4.9"
Weight (Approximate):
6.70 oz
Miscellaneous
Additional Information:

Scan Rate: 750mm/sec

USB Cable separate

Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
