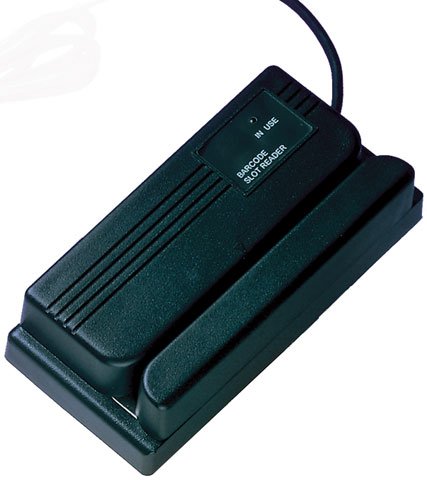

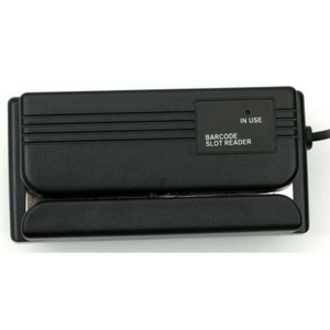

MS140-2 Barcode Card Reader

Part Number: MS140-2
Model: MS140
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Light Source
LED
Maximum Scan Resolution
6 mil
Depth of Field
2mm

Product Description:

  RS-232, with DB9 Connector, Decoded - requires power supply, see accessories.
Explore all Unitech MS140 Barcode Card Readers
Add to Quote
MS140-2 Barcode Card Reader
MS140-2 Barcode Card Reader
MS140-2 Barcode Card Reader
MS140-2 Barcode Card Reader
MS140-2 Barcode Card Reader MS140-2 Barcode Card Reader MS140-2 Barcode Card Reader

Full specifications (PDF)

Unitech MS140 Barcode Card Reader Model Overview

The Unitech MS140 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15mm), the MS140 is capable of reading any barcoded identification badge.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Light Source:
LED
Maximum Scan Resolution:
6 mil
Depth of Field:
  • 2mm
Scanning Distance:
0.43"
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.3"
Width:
2.4"
Depth:
4.9"
Weight (Approximate):
6.70 oz
Miscellaneous
Additional Information:
  • Rugged, lightweight housing
  • Reads visible and laminated barcode labels
  • Advanced Data Editing
  • Depth of field: 2 mm
  • Case material: ABS plastic
  • Max card thickness:54 mils (.054" , 1.37mm)
  • Mechanical shock: 5 ft. (1.5 m) drop on concrete
  • Power Requirement: May Require 5V AC Adapter
  • Wide slot allows thicker badges
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
