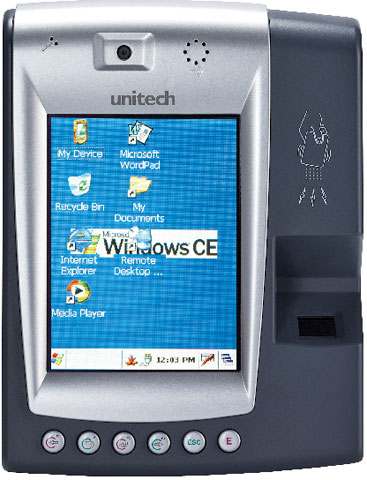

Unitech MT650 Data Terminal

Unitech MT650  -  The MT650 is the new upgraded version of the MR650 fixed mount terminal. This multifunctional terminal is ideally suited for time management, access control, loyalty programs, intercom, work-in-process and surveillance applications. Running on the Windows CE 6.0 operating system and featuring a large 5.7-inch VGA color touch screen, the MT650 also works as a mini-Kiosk station on top of a variety of applications. Users increase productivity right from the start. The MT650 package includes programming tools and support software to make application development easier than ever. The MT650 can communicate with a central host security and time & attendance system via standard Ethernet or WLAN networks. The MT650 is also capable of controlling area security with its built-in CMOS digital camera, microphone, and audio speaker.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Please Call
Questions? Get Help from
a Mobile Expert!

What is your operating system?

Unitech MT650 Data Terminal
Unitech MT650 Data Terminal
Accessories For Unitech MT650 Data Terminal

Operating System

Interface Options

Display Size

Unitech MT650 Data Terminal Options

Full specifications (PDF)

Unitech MT650 Data Terminal Model Overview

The Unitech MT650 Video T&A Terminal is a versatile multifunctional device designed for seamless integration into time management, access control, intercom, and surveillance systems. Featuring a large 5.7” VGA color touch screen with a resolution of 480 by 640 pixels, the MT650 operates on the Windows CE.NET 6.0 platform, making application development accessible and efficient. Its built-in CMOS digital camera, microphone, and audio speaker enhance security, while multiple readers—like proximity and fingerprint—allow for customizable technology choices. Powered by various communication interfaces, the MT650 takes your productivity to the next level by ensuring comprehensive security and attendance management solutions.

Key Features
  • Powered by WindowsCE.NET 6.0
  • Large 480 by 640 pixel color VGA display with touch screen
  • Built-in barcode, proximity, Mifare, and fingerprint readers
  • 2.0 MP CMOS camera
  • Speaker output and microphone input
  • Two relay output controls and two TTL digital inputs
  • Built-in UPS for 1-hour operation
  • Optional wireless communication support (802.11b/g)
  • Ethernet with optional POE (Power over Ethernet)


Specifications
  • Performance Characteristics:
    • OS: WindowsCE.NET 6.0
    • CPU: Samsung 6410
    • Display: 5.7" TFT-LCD VGA (480 X 640) color
    • DDR: 256MB
    • FlashROM: NAND 256MB
  • Readers:
    • EM 125 kHz
    • MiFare
    • HID Barcode reader 13.56 MHz
    • Fingerprint Input: EER <0.1%
    • 1:1 verification time < 1 sec
    • 1:N Identification time < 1 sec
    • Template capacity: 1900
  • I/O:
    • 2 Digital inputs
    • 2 Output relays
    • Audio speaker (0.8W)
    • Ethernet connection: One RJ45 with optional PoE
  • Power Management:
    • Power Input: DC 12V/2A
    • UPS: One rechargeable Lithium-ion battery pack (7.4V, 1200 mAH)
    • Micro-backup battery for keeping RTC data (6 days)
  • Expansion:
    • SDIO for SDHC memory storage (up to 16 GB)
    • USB Host 1.1
  • Physical and Environmental:
    • Dimensions: 223L x 168W x 51H mm
    • Weight: 1310g
    • Humidity: 5% to 95% RH non-condensing
    • Operating temperature: -10°C to 50°C
    • Storage temperature: -20°C to 70°C (-4°F to 158°F)
