Line interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in, single-line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Offers 4 minute battery runtime with a full load of 550VA/300 watts and 15 minutes with a half load of 275VA/150 watts.
4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"
Interfaces/Ports
USB:
Yes
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4 Minute
Backup/Run Time (Half Load):
15 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Product Color:
Black
Height:
8.5"
Width:
5"
Depth:
6.5"
Form Factor:
Tower
Weight (Approximate):
14.40 lb
Miscellaneous
Package Contents:
SMART550USB UPS System
USB and Telephone interconnection cables
Instruction manual with warranty information
Additional Information:
SMART550USB line interactive UPS system offers voltage regulation and battery support, plus complete AC and dialup/DSL modem line surge suppression
Supports entry level PC systems for up to 30 minutes during power failures to enable a safe system shutdown
Supports a max load of 550VA/300 watts for 5 minutes and a half load of 275VA/150 watts for 17 minutes
Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power
Attractive stealth black tower configuration

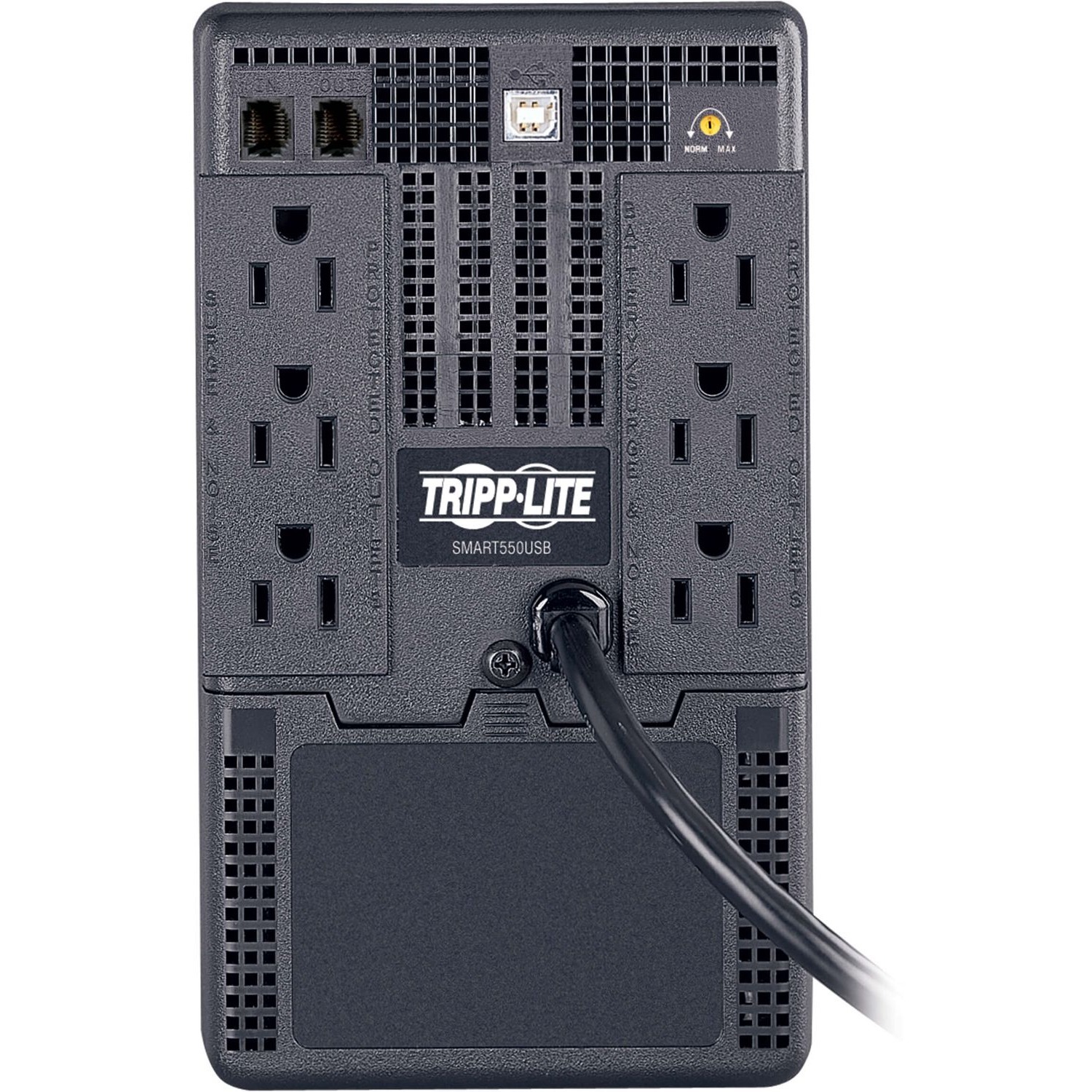

Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6 foot AC line cord (all NEMA 5-15)
USB port enables unattended shutdown without data loss during extended power failures, includes USB cable
PowerAlert software available via free download from www.tripplite.com
Built-in RJ11 phone suppression jacks protect modem, fax machine or other peripheral with a dialup or DSL line phone connection

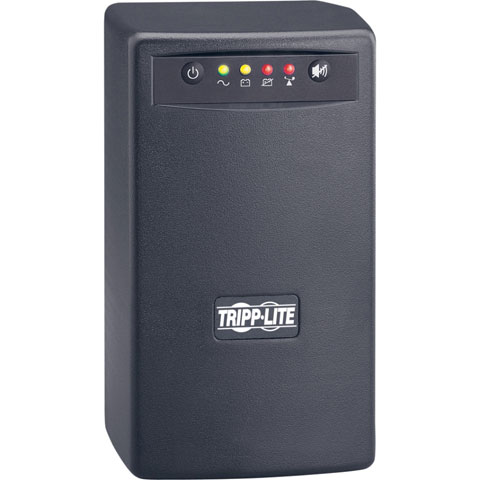

Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
550VA / 300 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
Supports battery replacement via built-in access panel
Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more
2 year manufacturers warranty
$200,000 Connected Equipment Insurance (USA & Canada Only)
Certifications & Standards:
UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
