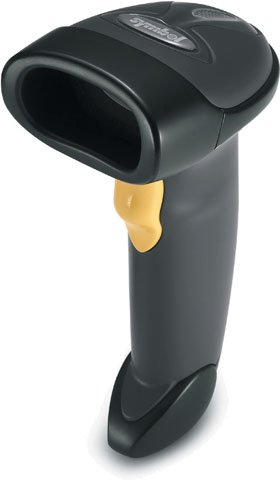

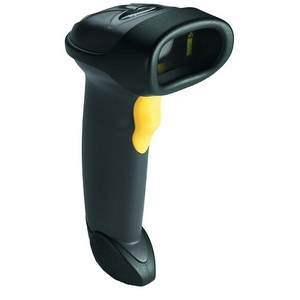

Symbol LS2208-SR20007 Barcode Scanner

Zebra LS2208-SR20007R Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra LS2208-SR20007R Barcode Scanner.
Symbol LS2208 - Decoded, Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
  • Perfect for applications that require direct association with a workstation or a notebook
  • Powerful laser scan source provides 100 scan/s decode rate
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued See Replacement
Add to Quote

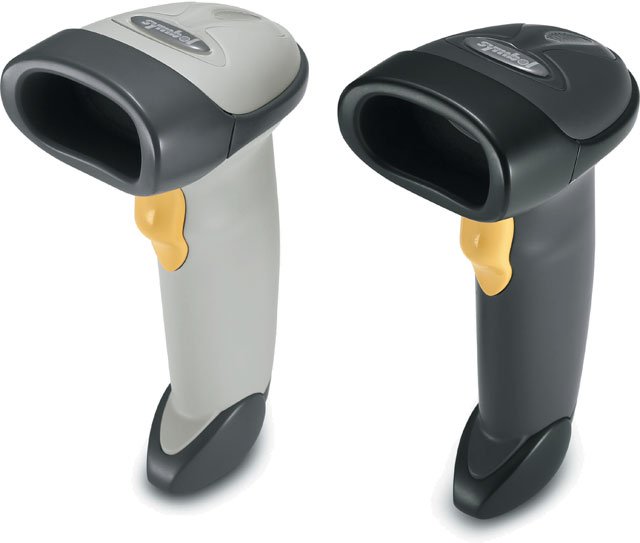

Symbol LS2208 Barcode Scanner Model Overview
With over eight million sold, the LS2208 remains Zebra's best selling handheld laser scanner. The LS2208 has it all ? enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 ? the well-proven scanner powering the checkout lines all around the world.
Symbol LS2208-SR20007 Barcode Scanner Overview

The innovative LS 2208 hand-held Bar Code Reader delivers performance features at an affordable price to make your buying decision easier than ever. If you're seeking investment protection and great value in a small, light scanner that assures maximum productivity, then the LS 2208 is the ideal scanner for you. From the checkout line to the back room, the LS 2208 helps you make the most of your application-specific solution in a variety of ways.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Code 11
  • IATA
  • RSS Variants
  • China Post 2 of 5
Light Source:
Laser
Scan Rate:
100 scan/s
Depth of Field:
  • 2.5" - 6"@5mil
  • 1.5" - 10"@7.5mil
  • 1" - 14.5"@10mil
  • 0" - 17"@100% UPC
  • 0" - 23"@20mil
Scan Pattern:
Bi-directional
Scanning Distance:
17"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse
  • Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori

    Laser Safety:

    • CDRH Class II
    • IEC Class 2
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0100001021513
    UPC: 100001021513
    EAN: 0100001021513
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol LS2208-SR20007 Barcode Scanner is also known as SYM-LS2208SR20007 or LS2208SR20007.
