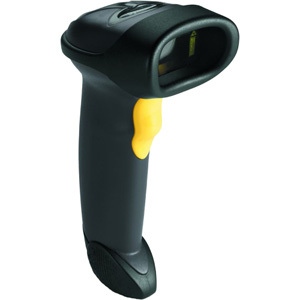

Symbol LS2208-7AZU0100ZR Barcode Scanner

Zebra LS2208-7AZU0100ZNA Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra LS2208-7AZU0100ZNA Barcode Scanner.
Symbol LS2208 - USB kit, 1D Laser. Includes 7' straight USB cable. Stand sold separately. Color: Black.
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol LS2208 Barcode Scanner Model Overview
With over eight million sold, the LS2208 remains Zebra's best selling handheld laser scanner. The LS2208 has it all ? enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 ? the well-proven scanner powering the checkout lines all around the world.
Symbol LS2208-7AZU0100ZR Barcode Scanner Overview

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range from near contact to 17 inches makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Full ASCII
  • Discrete 2 of 5
  • Codabar
  • Code 128
  • Code 11
  • UPC
  • Interleaved 2 of 5
  • Code 128 Full ASCII
  • Code 39 Trioptic
Light Source:
Laser
Scan Rate:
100 scan/s
Scan Pattern:
Single Line
Scanner Range:
Standard Range
Scanning Distance:
17"
Cable Type Included:
USB
Stand Included:
No
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
30°
Maximum Ambient Light:
86111 lux
Drop Specification:
Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
40 mil
Interfaces/Ports
Host Interface:
USB
Power Description
Power Source:
USB
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color:
Twilight Black
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP30
Application/Usage:
  • Retail
  • Education
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
