Star TUP592-24 Receipt Printer

The Star TUP592-24 Receipt Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Star - 80mm Kiosk, Thermal, Friction, 2 Color, Presenter, External Power Supply
  • Parallel, USB, Serial, LAN interfaces (sold separately)
  • Kiosk receipt/label printer
  • Includes presenter
  • Monochrome (two-color with special media)
  • Direct thermal printing
  • Paper roll width (3.25 in)
  • Resolution of 203 dpi
  • Speed of up to 220mm/s
  • External power supply needed
Read More
Discontinued Need Assistance?
Add to Quote
Star Parts Accessory Model Overview
Products and parts from Star.

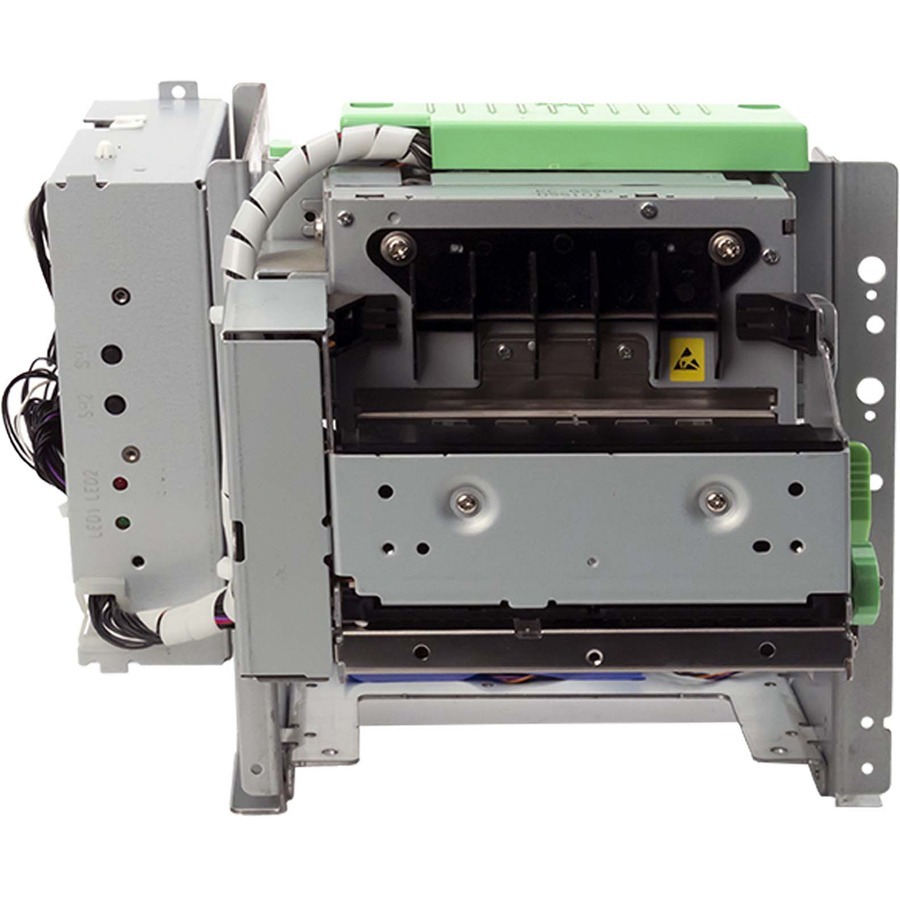

Star TUP592-24 Receipt Printer Overview

With a compact footprint and adjustable paper widths up to 82.5mm, the TUP592 is a welcomed addition to Star Micronics' kiosk printer line to provide solutions for a great range of applications. The TUP592 features an industry-leading print speed of up to 220 mm/sec and a high reliability with a MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The presenter also uses Star Micronics' document capture technology to retract receipts left by the user, resulting in increased document security and a cleaner operation area.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8.66 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
3.15"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • JAN
  • EAN-8
  • EAN-13
  • ITF
  • Code 39
  • Code 93
  • Code 128
  • Codabar
Application/Usage:
Desktop
Features:
  • Auto-cutter
  • Compact
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Receipt
Media Sensor:
  • Out Of Paper Sensor
  • Paper Low Sensor
  • Reflective Media Sensor
Media Thickness:
5.91 mil
Maximum Roll Diameter:
5.91"
Maximum Label Width:
3.25"
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Height:
7"
Width:
6.3"
Depth:
9.2"
Miscellaneous
Platform Supported:
  • Mac
  • PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0088047236002, 4951319236009, 5711045586118
UPC: 088047236002
EAN: 0088047236002, 4951319236009, 5711045586118
UNSPSC: 45101512
Questions? Get help from
a POS Expert!

What is your POS application?

The Star TUP592-24 Receipt Printer is also known as STA-TUP592-24
