Full specifications (PDF)
Recommended Use:
Receipt Print
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Number of Columns:
64
Maximum Print Width:
3"
Star TSP200 Series Receipt Printer Model Overview
The TSP200 Series are high-speed, silent, receipt printers with high resolution packaged in a very compact housing.

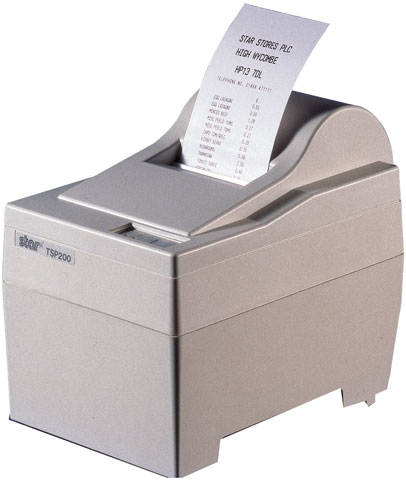

Star TSP242-24 Receipt Printer Overview
The TSP242 is a high-speed, silent, Label printer with high resolution packaged in a very compact housing. The printer offer a captive paper roll holder and a metal tear bar. An autocutter is available for applications when a tear bar is insufficient.
The ideal printer for a variety of applications, the TSP242 offers a high print speed during text and graphics printing. The TSP242 utilizes popular 3" wide thermal paper. Maximum flexibility is provided by a dual interface.
Technical Information
Memory
Standard Memory:
4 KB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Thermal Paper
Maximum Roll Diameter:
3.35"
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Product Color:
White
Height:
7.6"
Width:
6.2"
Depth:
9.2"
Miscellaneous
Additional Information:
- Printer Buffer 4 KB
- Enclosure Color: Beige
- Headlife Reliability: 50km
- Linear Direct Thermal Print Head
- Peripheral Driver 1 circuit (24V, Max. 1A)
- Many popular Bar Code symbologies built-in
- Mechanism Reliability: 38 million lines (CRT)
- Identical housing of Star's Dot Matrix SP200 Printer
- Black mark sensor is selectable to detect the top of the page
- Character Set ASCII, International, Downloadable characters
Item Numbers
GTIN:
0088047093414
UPC:
088047093414
EAN:
0088047093414
UNSPSC:
43212108
Questions? Get help from
a POS Expert!
a POS Expert!
The Star TSP242-24 Receipt Printer is also known as
STA-TSP242-24
or TSP24224.
