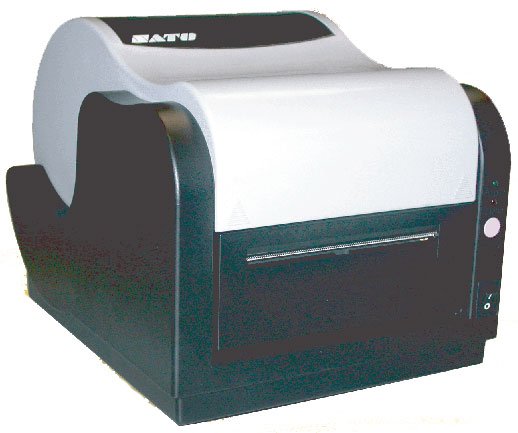

SATO WCX400101 Barcode Label Printer

The SATO WCX400101 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
SATO CX400 - Sato CX400 Thermal Label Printer - 203 dpi - Serial, Parallel
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
4.75 inch
Ribbon Core Size
0.5 inch
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
SATO CX400 Barcode Label Printer Model Overview
The 205 dpi CX400 Series printers provide users with an ideal low-cost, low volume labeling solution. Designed for convenience, the CX400 has many advanced features including larger media capacity, user replaceable print head and platen, and a high lift print head carriage that makes it easy to clean and load supplies.
SATO WCX400101 Barcode Label Printer Overview

The CX400 printer provide users with an ideal low-cost, low volume labeling solution. Designed for convenience, the CX400 has many advanced features including larger media capacity, user replaceable printhead, and a high-lift printhead carriage that makes it easy to clean and load supplies.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • MSI
  • Bookland
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • UCC/EAN 128
  • PDF-417
  • Maxi Code
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Label
  • Thermal Transfer Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Size:
Custom Size - 4.70" x 45"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.69"
Ribbon Core Size:
0.50"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.5"
Width:
7.8"
Depth:
10.2"
Miscellaneous
Package Contents:
  • CX400 Label Printer
  • Labeling Software
  • Parallel Printer Cable
  • Starter Roll of Media & Ribbon
  • 110 VAC Power Supply
  • User's & Programmers Guide
Power Adapter Included:
Yes
Additional Information:
  • Graphic Support: Printing & storage of .PCX, .BMP format, SATO Hex/binary

Sensing:

  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Label present sensor - optional with label dispenser
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TUV
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The SATO WCX400101 Barcode Label Printer is also known as SAT-YCX400101 or WCX400101.
