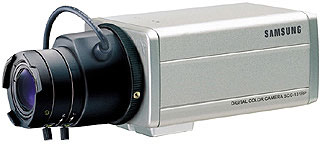

Samsung SCC-131B Color Surveillance Camera

520 TV Lines of Horizontal Resolution

The Samsung SCC-131B Color High Resolution color camera has been designed to perform in a variety of conditions where high resolution and clear imaging is required. The SCC-131B Color features a 410,000 Pixels 1/3" Super HAD CCD imaging device and can be used with a variety of lens and mounting accessories. The camera will operate in multiple lighting conditions due to the Super HAD chip set and backlight compensation circuitry that yields an illumination sensitivity of 0.3 lux. Features also include switch programming for line lock, flicker prevention, and AWB (automatic white balance) as well as camera selectable CS/C lens options. The camera provides 520 TV lines of resolution with more than 50 dB signal to noise ration for crystal clear images in a variety of conditions. For convenience and flexibility the camera is dual voltage, supports the use of DC and Video driven lenses and has a built in ground isolation transformer. The SCC series of cameras are the perfect imaging devices for a variety of surveillance applications.

Full specifications (PDF)
