Full specifications (PDF)
Recording Modes:
- Manual
- Time Schedule
- Continuous
- Event
Backup Modes:
- DVD RW
- USB

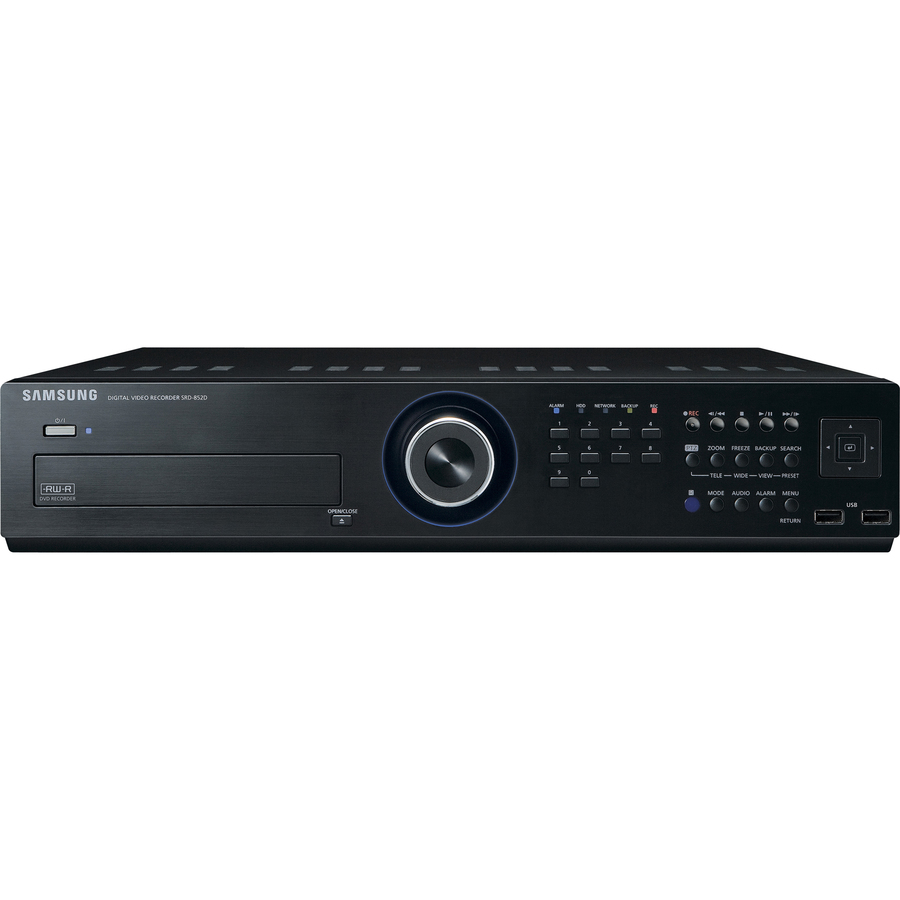

Samsung SRD-852D Surveillance DVR Model Overview
SRD-852D is an economical recording solution with embedded Linux and H.264 codec technology. All channels can simultaneously record up to full frame rate (30 fps NTSC / 25 fps PAL) at CIF resolution. The SRD-852D comes equipped with a built-in DVD burner and support up to 4 internal SATA hard drives.
Technical Information
Storage
Hard Drive Capacity:
1 TB
Video
Maximum Frame Rate:
240 fps
Maximum Video Resolution:
704 x 576
Video Signal Format:
- NTSC
- PAL
Video Formats:
- H.264
- AVI
- CIF
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
VGA:
Yes
Number of VGA Outputs:
1
Composite Video:
Yes
Number of Composite Video Inputs:
8
Network (RJ-45):
Yes
USB:
Yes
USB Standard:
USB 2.0
Audio Line In:
Yes
Number of Analog Audio Inputs:
4
Audio Line Out:
Yes
Number of Analog Audio Outputs:
1
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Maximum Power Consumption:
60 W
Physical Characteristics
Height:
3.5"
Width:
17.3"
Depth:
16.8"
Weight (Approximate):
16.53 lb
Miscellaneous
Package Contents:
- SRD-852D 8-Channel Digital Video Recorder
- Remote Control
Certifications & Standards:
CE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0032238002174, 6950207318535
UPC:
032238002174
EAN:
0032238002174, 6950207318535
UNSPSC:
52161545
