Full specifications (PDF)
Number of Channels:
8
Recording Modes:
- Time Schedule
- Pre-event
- Post-event
- Continuous
- Pre-alarm
- Post-alarm
Backup Modes:
- DVD RW
- USB

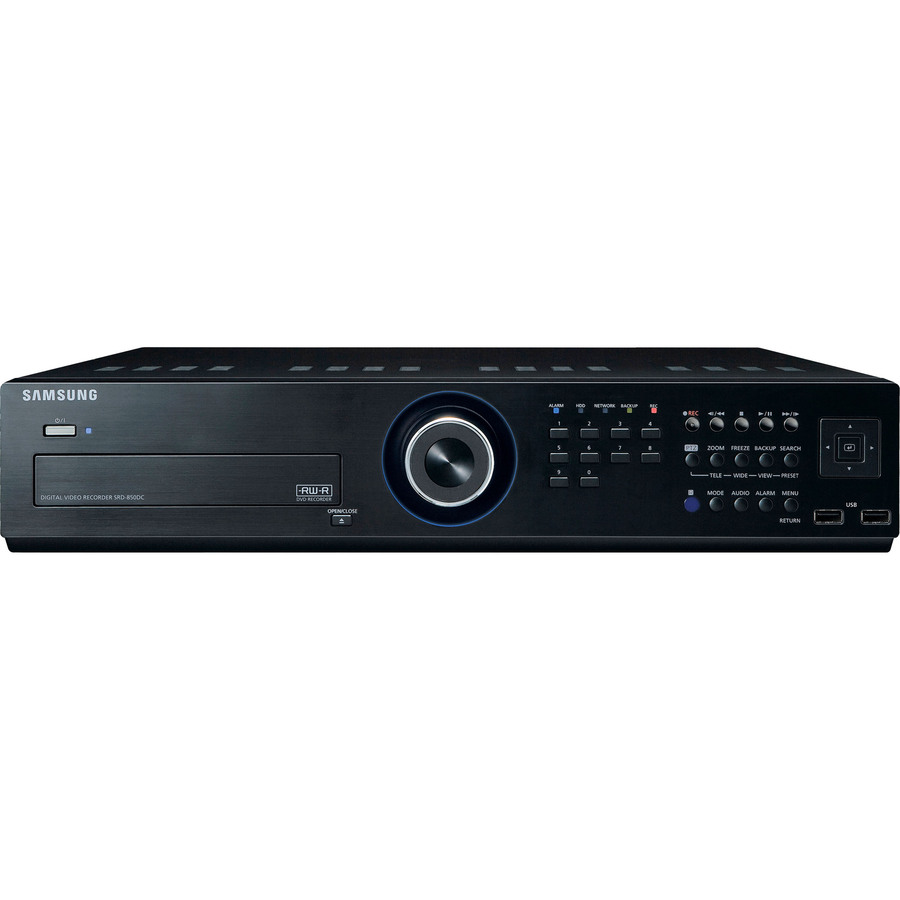

Samsung SRD-850DC Surveillance DVR Model Overview
SRD-850DC is a high performance 8 channel recording solution with embedded Linux and H.264 codec technology. This DVR records up to 240/200 (NTSC/PAL) fps at CIF resolution. The SRD-850DC comes equipped with up the coax support feature and multiple RS-485 protocol support.
Samsung SRD-850DC-2TB Surveillance DVR Overview
SRD-850DC is a high performance 8 channel recording solution with embedded Linux and H.264 codec technology. This DVR records up to 240/200 (NTSC/PAL) fps at CIF resolution. The SRD-850DC comes equipped with up the coax support feature and multiple RS-485 protocol support.
Technical Information
Storage
Hard Drive Capacity:
2 TB
Audio
Audio Formats:
ADPCM
Video
Maximum Frame Rate:
240 fps
Maximum Video Resolution:
704 x 576
Video Signal Format:
- NTSC
- PAL
Video Formats:
H.264
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
HDMI:
Yes
VGA:
Yes
Number of VGA Outputs:
1
Composite Video:
Yes
Number of Composite Video Inputs:
8
Network (RJ-45):
Yes
USB:
Yes
USB Standard:
USB 2.0
Audio Line In:
Yes
Number of Analog Audio Inputs:
8
Audio Line Out:
Yes
Number of Analog Audio Outputs:
1
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Maximum Power Consumption:
60 W
Physical Characteristics
Height:
3.5"
Width:
17.3"
Depth:
16.8"
Weight (Approximate):
16.53 lb
Miscellaneous
Package Contents:
- 8CH CIF H.264 Real-time Digital Video Recorder
- Remote Control
Certifications & Standards:
- UL
- CE
- FCC
- cULus
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
8801089053275
EAN:
8801089053275
UNSPSC:
52161545
Get help from a Barcoding Expert!
The Samsung SRD-850DC-2TB Surveillance DVR is also known as
SMG-SRD850DC2TB
