System Components:
Digital Video Recorder
Samsung SHR-5080 Surveillance DVR
Part Number:
SHR-5080
Model:
SHR-5080

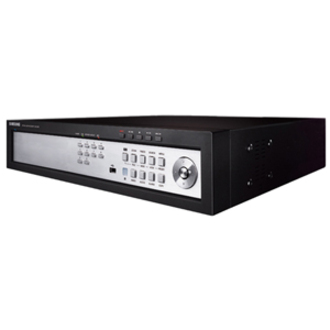

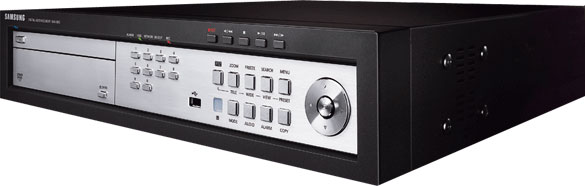

Samsung SHR-5080 Surveillance DVR Model Overview
The Samsung SHR-5080 DVR is a standalone system that can record up to 120/100 images per second from 8 channels using MPEG4 compression. It is able to simultaneously record-to and play-from a hard drive in real time by compressing the audio of 4 channels with ADPCM (Adaptive Differential Pulse Code Modulation). Using dual codecs, the Samsung SHR-5080 DVR can smoothly record and transmit through a network, allowing continuous remote monitoring even in a poor network environment.
Samsung SHR-5080 Surveillance DVR Overview
The new SHR-5080 Digital Video Recorder from Samsung Electronics uses dual codec to record to the local HDD and transmit video over the network. MPEG-4 compression provides crisp high quality images with excellent utilization of available storage space. This allows high quality recording and remote monitoring.
Technical Information
Storage
Hard Drive Capacity:
250 GB
Video
Video Formats:
MPEG-4
Video Signal Format:
- NTSC
- PAL
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Composite Video In:
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
4
Total Number of Audio Out Ports:
1
VGA:
Yes
Power Description
Input Voltage:
- 220 V AC
- 240 V AC
Physical Characteristics
Height:
3.5"
Width:
16.9"
Depth:
15.8"
Weight (Approximate):
16.10 lb
Miscellaneous
Additional Information:
- Watermark for preventing video alteration
- Convenient IR remote control
- Multiple video outputs supported
Item Numbers
UNSPSC:
46171621
