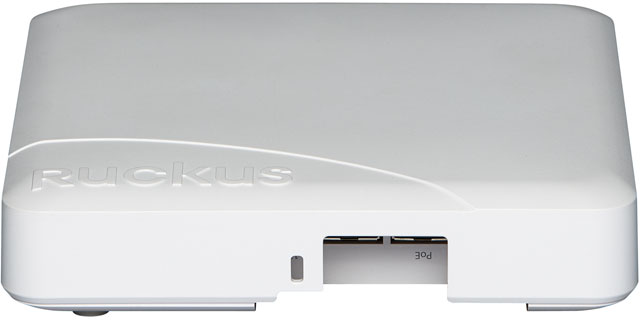

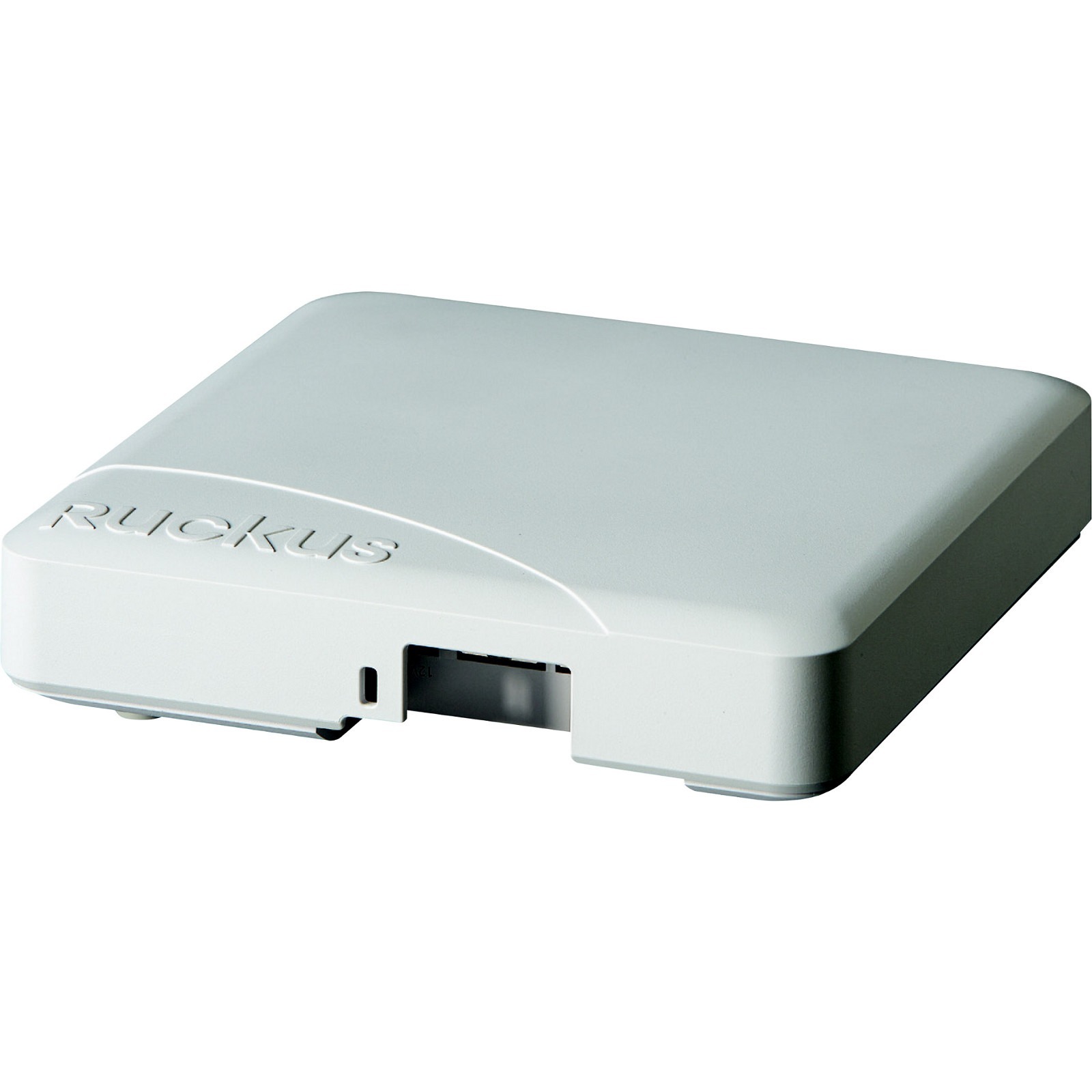

Ruckus 901-R500-US00 Access Point

The Ruckus 901-R500-US00 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Ruckus ZoneFlex R500 - Ruckus Wireless ZoneFlex R500 IEEE 802.11ac 867 Mbit/s Wireless Access Point - 2.48 GHz, 5.85 GHz - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Desktop
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11ac technology and speeds up to 867 Mbit/s
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
Read More

Need a different version? See all Ruckus ZoneFlex R500 Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Ruckus 901-R500-US00 Access Point
Ruckus 901-R500-US00 Access Point Ruckus 901-R500-US00 Access Point Ruckus 901-R500-US00 Access Point
Ruckus 901-R500-US00 Access Point
Ruckus 901-R500-US00 Access Point
Ruckus 901-R500-US00 Access Point
Full specifications (PDF)
Ruckus ZoneFlex R500 Access Point Model Overview
The Ruckus ZoneFlex R500 delivers high-performance and reliable 802.11ac wireless networking at a competitive price point. Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R500 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to an additional 4dB of BeamFlex gain on top of the physical antenna gain and up to 10dB of interference mitigation.
Ruckus 901-R500-US00 Access Point Overview

High Performance, Mid-Range 2x2:2 802.11ac Smart Wi-Fi Access Points with Adaptive Antenna Technology

The Ruckus ZoneFlex R500 delivers high-performance and reliable 802.11ac wireless networking at a competitive price point.

Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R500 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to an additional 4dB of BeamFlex gain on top of the physical antenna gain and up to 10dB of interference mitigation.

A sleek and low-profile design, the ZoneFlex R500 was purposebuilt for enterprises requiring reliable high speed client connectivity. It is ideal for a variety of medium density enterprise and hotspot environments including SMBs, hotels, retail outlets, and branch offices.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.48 GHz
  • 5.85 GHz
Wireless Transmission Speed:
867 Mbit/s
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
Desktop
Height:
1.6"
Width:
6.2"
Depth:
6.2"
Weight (Approximate):
12.35 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
GTIN: 0190801045284, 0702458679745, 0725175750283, 0735548626343, 0795954970775, 7111199902662
UPC: 190801045284, 702458679745, 725175750283, 735548626343, 795954970775
EAN: 0190801045284, 0702458679745, 0725175750283, 0735548626343, 0795954970775, 7111199902662
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-R500-US00 Access Point is also known as RUC-901R500US00
