Ruckus 901-7762-US01 Access Point

The Ruckus 901-7762-US01 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Ruckus ZoneFlex 7762 - Ruckus Wireless ZoneFlex 7762 Wireless Outdoor Access Point - IEEE 802.11n (draft) 600Mbps - 1 x 10/100/1000Base-T PoE, 1 x 10/100Base-TX PoE
  • Ensure speedy data transfer of up to 600 Mbit/s with the IEEE 802.11n wireless technology
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More
Discontinued Need Assistance?
Add to Quote

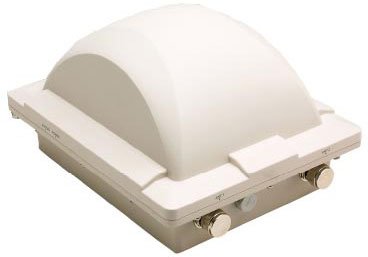

Ruckus ZoneFlex 7762 Access Point Model Overview
The ZoneFlex 7762 uniquely combines dynamic beamforming, adaptive meshing and the power of 802.11n to enable a new level of outdoor performance at the lowest cost. Built to withstand the harshest of outdoor conditions, Ruckus designed the ZoneFlex 7762 with the flexibility to function as a standalone AP or as a managed device, using the same wireless controller as its indoor Smart Wi-Fi products. If no Ethernet cabling is available, the outdoor AP meshes seamlessly with the indoor ZoneFlex 7962. Unprecedented performance enables connections of 150Mbps or more between mesh nodes at distances of up to 300 meter or more. In addition, unlike any other outdoor Wi-Fi device today, the ZoneFlex 7762 provides advanced interference avoidance and rejection to ensure the highest resilience for both client and inter-node mesh connections. Now customers have a simple to use, indoor/outdoor, Smart Wi-Fi environment that provides extended range, simple deployment, reliable connectivity and consistent performance at range.
Ruckus 901-7762-US01 Access Point Overview

ZoneFlex 7762 Wireless Outdoor Access Point is to integrate dynamic beamforming technology to enable much longer range signals, better signal penetration inside building, and more resilient mesh connection that automatically adapt to interference and changing environmental conditions.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
7 dBi
Antenna Type:
Directional Antenna
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK
  • WPA-TKIP
  • WPA2-AES
  • SSH
  • RADIUS
  • IEEE 802.11i
  • IEEE 802.1X
Interfaces/Ports
Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • CLI
  • Telnet
  • SNMP
  • HTTP/HTTPS
  • IEEE 802.1Q (VLAN)
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
  • Pole-mountable
Height:
5.6"
Depth:
9.4"
Weight (Approximate):
4.19 lb
Miscellaneous
Additional Information:
  • Simultaneous Vo-Fi Clients: Up to 20
  • BSSID: Up to eight per radio (16 total)
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-7762-US01 Access Point is also known as RUC-9017762US01
