Ruckus 901-7341-WW00 Access Point

Ruckus 901-R300-WW02 Access Point A newer version of this item is available.
It is replaced by the Ruckus 901-R300-WW02 Access Point.
Ruckus ZoneFlex 7341 - Ruckus Wireless ZoneFlex 7341 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Ceiling Mountable, Desktop
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • Ensure speedy data transfer of up to 300 Mbit/s with the IEEE 802.11n wireless technology
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More

Need a different version? See all Ruckus ZoneFlex 7341 Access Points

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Ruckus 901-7341-WW00 Access Point
Ruckus 901-7341-WW00 Access Point Ruckus 901-7341-WW00 Access Point Ruckus 901-7341-WW00 Access Point Ruckus 901-7341-WW00 Access Point
Ruckus 901-7341-WW00 Access Point
Ruckus 901-7341-WW00 Access Point
Ruckus 901-7341-WW00 Access Point

Full specifications (PDF)

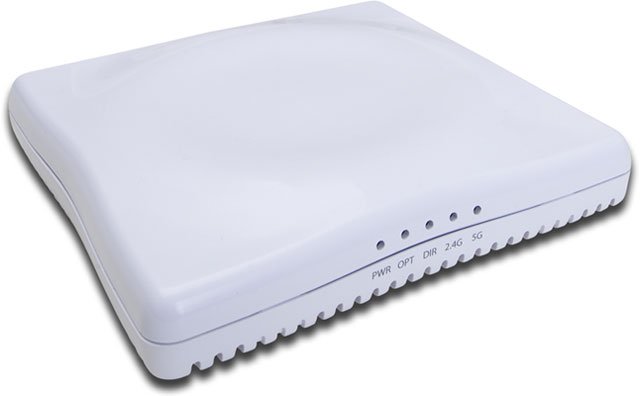

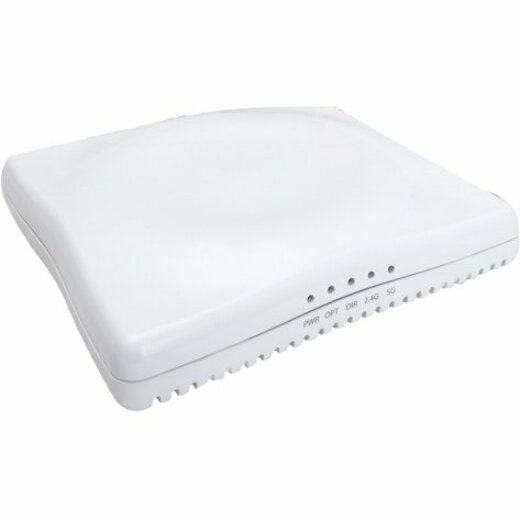

Ruckus ZoneFlex 7341 Access Point Model Overview
The Ruckus ZoneFlex 7341 delivers high-performance and reliable 802.11n wireless networking at the industry's most affordable price point. Unlike any other 802.11n wireless solution in its class, the ZoneFlex 7341 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with 4dBi of signal gain and 10dB of interference rejection. The ZoneFlex 7341 delivers a 2- to 4-fold increase in signal range with lower packet error rates while reducing the number of APs required to deliver dependable Wi-Fi service. A sleek and low-profile design, the ZoneFlex 7341 was purpose-built for cost-minded enterprises requiring reliable high speed client connectivity. It is ideal for a variety of enterprise and hotspot environments including hotels, schools, retail outlets, branch offices and public venues.
Ruckus 901-7341-WW00 Access Point Overview

SINGLE/DUAL-BAND 802.11N SMART WI-FI ACCESS POINTS

High Performance, 802.11n Mid-Range Smart Wi-Fi Access Points with Adaptive Antenna Technology

Unlike any other 802.11n wireless solution in its class, the ZoneFlex 7300 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to an additional 4dB of BeamFlex gain on top of the 6 dBi physical antenna gain and 10dB of interference mitigation.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
Antenna Gain:
6 dBi
Antenna Type:
Directional Antenna
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK (AES)
  • IEEE 802.1x
  • WPA-TKIP
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • FlexMaster
  • ZoneDirector
  • SNMP v1/2/3
  • DHCP
  • Web-based Management
  • Command Line Interface (CLI)
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
  • Desktop
Height:
1.4"
Width:
7"
Depth:
7"
Weight (Approximate):
14 oz
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-7341-WW00 Access Point is also known as RUC-9017341WW00
