Planar 997-6316-00 Touchscreen

Part Number: 997-6316-00
Model: PT2285PW
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Viewable Screen Size
21.5"
Screen Mode
Full HD
Response Time
5 ms
Horizontal Viewing Angle
170°

Product Description:

  Planar PT2285PW 21.5" LCD Touchscreen Monitor - 5 ms - Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - Adjustable Display Angle - 1,000:1 - 300 Nit - Speakers - DVI - USB - VGA - RoHS - 3 Year
Explore all Planar PT2285PW Touchscreens
Add to Quote
Planar 997-6316-00 Touchscreen
Planar 997-6316-00 Touchscreen
Planar 997-6316-00 Touchscreen
Planar 997-6316-00 Touchscreen Planar 997-6316-00 Touchscreen Planar 997-6316-00 Touchscreen

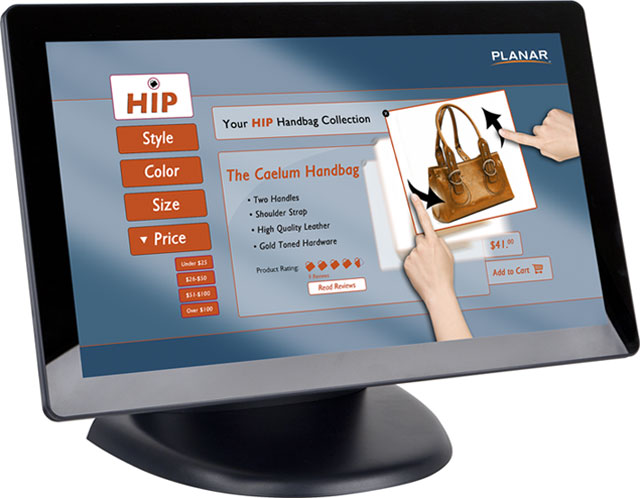

Planar PT2285PW Touchscreen Model Overview

The PT2285PW 22" widescreen multi-touch zero bezel monitor is perfect for use in retail, hospitality, healthcare and kiosk applications. Easily integrated with a variety of thin client or PC systems, the monitor features a projected capacitive touch screen and USB touch screen interface. It's available with both analog and DVI-D input options. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.
Technical Information
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Response Time:
5 ms
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
83.20 Hz
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Built-in Devices
Built-in Devices:
Speaker
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
42 W
Off-Mode Power Consumption:
1 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
13"
Width:
21.2"
Depth:
2.9"
Height with Stand:
14.96"
Width with Stand:
21.18"
Depth with Stand:
11.22"
Weight (Approximate):
23.59 lb
Miscellaneous
Package Contents:
  • PT2285PW Touchscreen LCD Monitor
  • Power Cord
  • VGA Cable
  • DVI-D Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • TUV-T mark
  • CE
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689063162
UPC: 810689063162
EAN: 0810689063162
UNSPSC: 43211903
