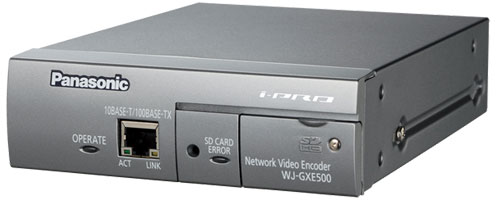

Panasonic WJ-GXE500 Network Video Server
Panasonic WJ-GXE500 -
Panasonic's WJ-GXE500 Network Video Encoder is part of the Panasonic i-PRO SmartHD lineup. The WJ-GXE500 is a Power over Ethernet (PoE) IEEE802.3af, 4-channel encoder that uses less than half the power consumption of equivalent models. The WJ-GXE500 also uses the Panasonic proprietary UniPhier System LSI that is compliant with the H.264 High Profile standard format and makes it possible to stream video over the network at a lower data size. The WJ-GXE500's motion adaptive interlace/progressive conversion allows every frame to be clear, even when the subject is moving.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$973.45
Get help from a Barcoding Expert!
Accessories For Panasonic WJ-GXE500 Network Video Server
Panasonic WJ-GXE500 Network Video Server Options
-
Panasonic WJGXE500 Network/IP Video Surveillance Equipment
Network Video Servers, Panasonic, 4 Channel H.264 Video Encoder
Panasonic WJ-GXE500 Network Video Server Model Overview
The Panasonic WJ-GXE500 4CH H.264 Video Encoder is a high-performance network video solution designed for efficient video processing and streaming. This compact device supports full-frame H.264 transmission across four channels, ensuring crystal-clear video quality even with fast-moving subjects. Built with advanced features including face detection and dual streams in H.264 and JPEG formats, this encoder is an ideal choice for professional surveillance applications. Its PoE capability and compatibility with various PTZ camera models make installation straightforward and versatile, while the SD card slot allows for convenient manual and alarm recording.
Key Features
- Full frame H.264 transmission for each of the four channels
- Motion adaptive interlace/progressive conversion for clear moving images
- Face detection technology for tracking human faces
- PoE support simplifies power supply via LAN connections
- Alarm inputs for enhanced security monitoring
- Multi-language GUI for easy operation and setup
Specifications
- TV System: NTSC / PAL
- Audio/Video Input: 4x 1.0 V (p-p) composite video inputs
- Video Resolution (D1 mode): 720 x 480 (NTSC) / 720 x 576 (PAL)
- Network Interface: 10Base-T/100Base-TX (RJ-45)
- Dimensions: 140 mm (W) x 44 mm (H) x 185 mm (D)
- Operating Temperature: -10 °C to +50 °C
- Power Consumption: 500 mA (12 V DC) / 6 W (PoE)
- Weight: 1.0 kg (approx.)
